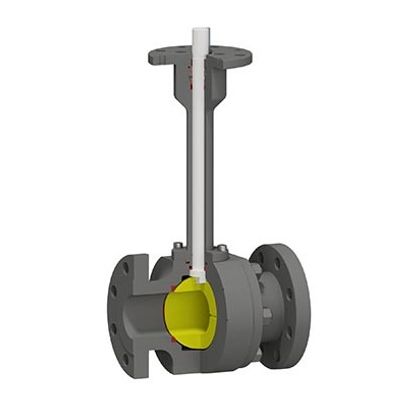

GWC Italia Cryogenic - Floating Ball Valve
FromGWC Italia SpA
Side-Entry (split-body) two or three pieces bolted construction, Seat-supported Ball, renewable seats, Full or Reduced Bore, Bi-Directional. Production range: API 6D. Size: ½” – 6” (DN15-DN150). Class: ANSI 150 to 2500. Services: LT / Cryogenic. Standard Temperature: -196 °C / -50 °C (-320 °F / -60 °F).
Most popular related searches
- API 6D
- BS6364
- ASME B16.34 / ASME VIII
- ISO 17292 / ISO 14313 / ISO 5208
- ASME B16.5 / B16.25 / B16.10
- MSS SP 25 – 44
- API 6D
- ISO 15848 – Measurement, Test and Qualification Procedures for Fugitive Emission
- API 607 / API 6FA / ISO 10497
- ATEX 2014/34/EU
- PED – 2014/68/UE
- TR-CU 010 / 012 / 032
- Seat supported ball
- Extended Bonnet
- Antistatic Device
- Firesafe to API 607 / API 6FA
- Anti-blowout Stem
- Metal Seated or Soft Seated
- Lip Seal Sealings
- Cavity Relief Hole
- Valve Bore / Face to Face / Special Ends Flanges according to customer requirements, including Hub, NORSOK, etc
- Corrosion resistant weld overlay on sealing surfaces or all wetted area
- Interlocking system
- Transition and Pup Pieces
- Suitable for Horizontal or Vertical Installation
- Manual or Actuator Operated
Other features are available on request.
