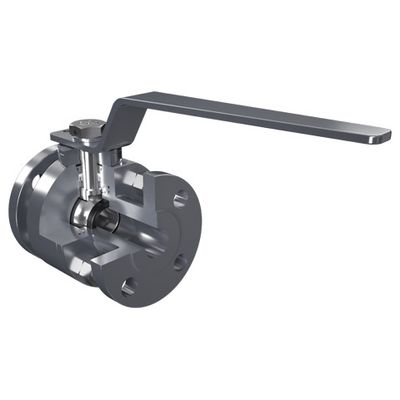

Valland - Model A21, A42, A43, A44 -Floating Ball Valve
FromValland S.P.A.
Applicable standards: API 6D. Design according to ASME B16.34 or ASME VIII Div. 1 & 2. Pressure Class Range: ANSI Class 150 lbs. to 4500 lbs. Size Range: From 1/2" to 8". Ends design: Flanged (RF/RTJ) - ASME B16.5, ASME B16.47 or MSS SP-44, Compact (Norsok Standard L-005). Butt-Weld (ASME B16.25) and/or Butt-Weld + Pipe. Hubbed according to client Clamp, Special client`s requirements.
Most popular related searches
ball valve
gas ball valve
floating ball valve
fugitive emissions testing
fire test
fire testing
valve operator
emissions testing
fugitive emissions
gas valve
- Body Design: Two or Three Pieces
- Closure Design: Bolted Closure
- Seat design: Soft Sealing - Metal to Metal (c/w hardfacing)
- Valve operation: Manual: Lever or Gearbox
- Available Materials: CS, LTCS, SS, Duplex SS, Super Duplex SS, 6Mo, Inconel, Incoloy, Hastelloy, Monel, Titanium
- NACE MR0175 according to client request.
- Additional Features: Anti Blowout Stem, Antistatic Device
- Testing and Certification: Testing:
- Hydrostatic, High Pressure Gas, Pneumatic and Functional
- API 598 - API 6D
- Fire testing: API 6FA, API 607, BS 6755 part 2, ISO 10497
- Fugitive Emission Test: ISO 15848 - 1 & 2
- PED 2014/68/UE Mod.H
