4Matic - Model 4M-OKE -Floating Ball Valve

FromAira 4Matic Global Valve Automation Pvt. Ltd.

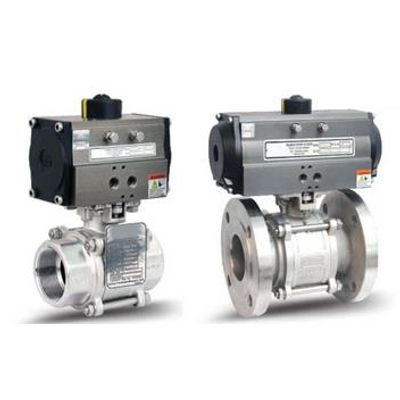

“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating in Three Piece design. Engineered for multiple On/Off operations in the down stream. Size Range : 1/2″ to 14″ Screwed / Flanged / Socket Weld

Most popular related searches

ball valve

floating ball valve

pneumatic valve positioner

float valve

pneumatic solenoid valve

Design And Manufacturing ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension ASME B 16.10
Flange Standard Conformity ASME B 16.5 Class 150 / 300 / 600
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI ISO – 5208

On / OFF Indicator
NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
Pneumatic & Electro-Pneumatic valve positioner
Declutchable Manual Over – Ride
Limit Switches for On / Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Air Lock Valve

4Matic - Model 4M-OKE -Floating Ball Valve

Standard

Accessories

Dimensions
