NivuFlow - Model 650 -Flow Meter for Pipes, Open Channels and Water Bodies

• Ultrasonic transit time measurement
• Single or multi path measurement, up to 32 measurement paths with extension modules
• Quick and easy initial start-up due to intuitive, modern operating concept
• The wide range of NIVUS transducers ensures suitability for each measurement application
• Online connection/data transmission and remote maintenance via Internet
• Uncomplicated integration into existing control systems via universal interfaces
• Weatherproof version for outdoor use available
• Compliant with ISO 6416 & IEC 60041

General description

The NivuFlow 650 is compliant with both ISO 6416 & IEC 60041 and has been developed for accurate flow measurement in open channels, part full and full pipes, and surface water bodies. To meet the highest possible accuracy requirements it is currently possible to utilise the NivuFlow 650 using up to 4 velocity paths. with extention modules up to 32 velocity paths. The NivuFlow 650 operates over the full bi-directional flow range without causing obstruction or head loss where the large array of NIVUS transducer models makes flow measurement possible across the widest possible range of applications

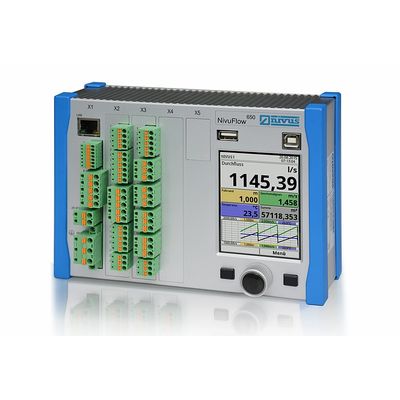

The compact transmitter design is easily integrated into instrument cabinets using a DIN rail mounting system and is also available with a field enclosure that provides full protection under harsh environmental operating conditions.
The transmitter‘s large graphic display allows quick and easy commissioning of the flow metering system.

The NivuFlow 650 provides extensive diagnostic options and allows in-depth analysis of operational function on site. The system has been developed using future proof protocols complete with versatile choices for communication and I/O connections that open up a wide range of options for operators to integrate the instruments into SCADA or similar operating systems

• Measurement of surface waters such as rivers, channels and similar
• Irrigation systems (volume distribution and billing)
• Drainage systems
• Hydropower plants (turbine efficiency and turbine optimisation etc.)
• Inlets and outlets conducting cooling water or circulation systems
• Penstock monitoring
• Industrial process waters
  and many more

Common

• Power supply: 100 - 240 V AC, -15 % / +10 %, 47 to 63 Hz or 10 - 35 V DC
• Power consumption: 1 relay energised, 230 V AC: (rounded) 14 W up to 8 sensors transit time 1 MHz
• Housing Material: aluminium, plastic
• Weight: approx. 1150 g
• Protection: IP 20 (installation in switching cabinet), IP 68 (field enclosure)
• Operating temperature:
• DC: -20°C to +70°C
• AC: -20°C to +65°C
• Storage temperature: -30°C to +80°C
• Max. humidity: 80%, non-condensing
• Display: 240 x 320 pixel, 65536 colours
• Operation: rotary pushbutton, 2 function keys,
• menus in English, German, French, Swedish ...
• Connection: plug with cage clamp terminals
• Inputs: 2x (Type T2) 4-20 mA, with 12 Bit resolution for
• storage of data from external units, load 91 Ohm,
• 2 x (Type T2) digital input
• Outputs:
• 2 x ( Type T2) 0/4-20 mA, load 500 Ohm,
• 12 Bit resolution
• 1x (Type T2) bistable relay SPDT,
• load up to 230 V AC/2 A (cos 0.9),
• minimum switching current 100 mA
• 1x (Type T2) relay SPDT, load up to 230 V
• AC/2 A (cos 0.9), min. switching current 100 mA
• Data memory: 1.0 GB internal memory, readout on faceplate via USB stick
• Communication/data transmission: Modbus TCP via network (LAN/WAN, Internet)
• Modbus RTU via RS485 or RS232
• Internet via Ethernet (in preparation)
• Measurement uncertainty: velocity (v): ± 0.1 % of measurement value depending on measurement uncertainty and margin conditions offset velocity < ± 5mm/s
• Number of paths:
• up to 4 measurement paths
• up to 32 paths with extention modules
