IPS - Model CRYSTAL Series -Flow Sensor for Precise Particle Detection

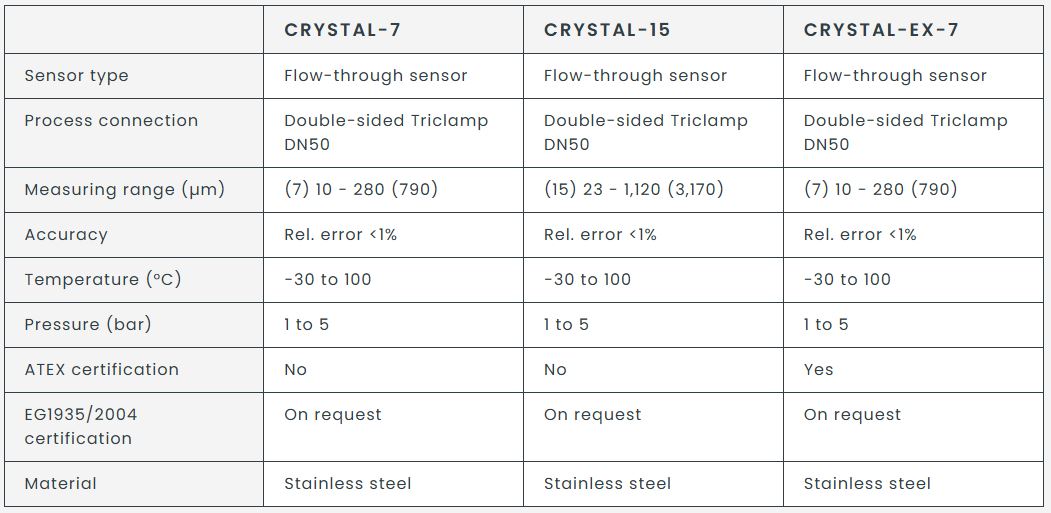

The CRYSTAL flow sensor is a specialized tool designed for inline applications in pipes or narrow apparatus, particularly adept at monitoring particles such as crystals, bubbles, or droplets in liquids. It produces high-contrast, true-to-scale imaging for precise analysis and control. The sensor features a variable measuring gap that allows for accurate measurements without obstructing fluid flow, catering to a measuring range from 10 to 3,170 µm, depending on the model variant. Notable for its precision, the sensor operates within a relative error of less than 1%. Constructed from stainless steel, it withstands temperatures from -30°C to 100°C and pressures ranging from 1 to 5 bar. While the Crystal-EX-7 model holds ATEX certification, other models require requests for EG1935/2004 certification. The sensor is supported by SOMA Workspace software, enhancing functionality with real-time data processing, customizable system control, and detailed reporting. This combination facilitates dynamic process management, adaptable to varying production requirements.Most popular related searches
particle detection
flow sensor
ATEX certification
process control system
fluid flow monitoring
particle sizing
particle monitoring
pipe sensor
flow monitoring
The inline sensor for pipes and narrow apparatus for monitoring crystals, bubbles or drops in liquids
- ... High-contrast and true-to-scale images of your system
- ... a variable measuring gap - for representative measurements without blocking
- ... Precise particle detection in size and shape
- ... Real-time data for controlling your system
