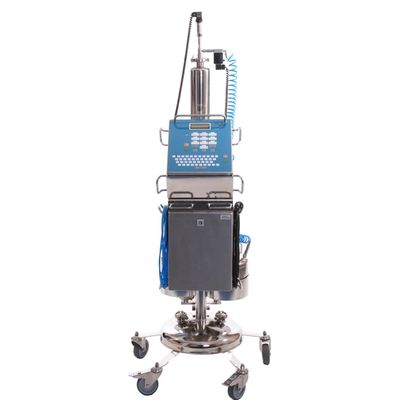

Flow Test - Model ita-01 -Filter Integrity Test Trolley

• The Diffusion Test (Forward Flow Test), based on the guideline DIN 58356 Part 2
• The Bubble Point Test
• The Diffusion and Bubble Point Tests
• The Pressure Drop Test (Pressure Hold Test)
• The Pressure Drop Test on huge vessels or fermenters up to 10 m³*
• The Pressure Drop Test on plastic bags up to 50L*
• The Filter Integrity Tests with the automatic filter wetting*
• The Water Intrusion Test (WIT), based on the DIN guideline DIN 58356 Part 12
• The Water Intrusion Test (WIT) on huge filter systems up to 150L*
• The Water Intrusion Test (WIT) with the automatic cooling of the filter housing *
• The filter integrity testing can be conducted over a long distance (50m) with draining or venting directly on the filter housing (no contamination from exhaust gases)*

*Additional accessories necessary!

• Portable and mains independent.
• Compact, the flexible wheels allow a fast and easy moving between different filter systems.
• Stainless steel, splash protected cabinet.
• It can easily carry all accessories, e.g. test adapters, cables or tubes as well as a water vessel for the WIT or for the wetting fluid.
• In-place Tests can be easily handled up to 10 m around the trolley.
• User-friendly interface that requires minimal training of operations.
• Easy to use and program.
• Automated testing.
• Filters and extremely small filters (e.g. Capsules, 50 mm Disposables, Mini Cartridges and Syringe Filters) can be easily tested directly on the "ita-01" due to a special filter holder installed on the rear of its cabinet.
• Configurable to automatically flush and drain filters.
• Maintains resolution and accuracy regardless of filter system size in the range of 0.1 to 35 litres. Tubes and cables have no influence on the test result!
• Integrated printer allows printing of test results in the place of testing.
• Up to 100 filter test programs can be stored in the instrument memory and an unlimited amount on a PC.
• Up to 40 filter test records can be stored in the instrument memory.
• Designed to 21 CFR Part II and delivered with an extensive qualification and documentation package.
• High reliability of the instrument guarantees its long operation.
