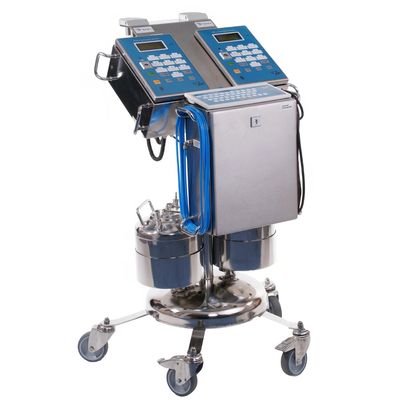

Flow Test - Model ita-02 -Filter Integrity Test Trolley
The Filter Integrity Test Trolley "ita-02" is a compact, mobile filter integrity test trolley designed for all standard filter integrity tests on both hydrophilic and hydrophobic membrane filters. In addition to integrity testing this instrument can be used as a calibration pressure gauge (0-4 or 0-8 barg) and is capable of checking unknown volumes, e.g. the upstream volume of a filter housing (from 0,1 to 35L).
- The Diffusion Test (Forward Flow Test), based on the guideline DIN 58356 Part 2
- The Bubble Point Test
- The Diffusion and Bubble Point Tests
- The Pressure Drop Test (Pressure Hold Test)
- The Pressure Drop Test on huge vessels or fermenters up to 10 m³ *
- The Pressure Drop Test on plastic bags up to 50L*
- The Filter Integrity Tests with the automatic filter wetting*
- The Water Intrusion Test (WIT), based on the DIN guideline DIN 58356 Part 12
- The Water Intrusion Test (WIT) on huge filter systems up to 150L*
- The Water Intrusion Test (WIT) with the automatic cooling of the filter housing*
- The filter integrity testing can be conducted over a long distance (50m) with draining or venting directly on the filter housing (no contamination from exhaust gases)*
*Additional accessories necessary!
- Portable and mains independent.
- Compact, the flexible wheels allow a fast and easy moving between different filter systems.
- Two independent working test channels allow it to test a lot of filters at the same and within a short time.
Note: High Reliability by Redundancy!
If any technical problems in one of the two instruments occur, the test device can be easily dismantled from the trolley and sent to a manufacturer to repair it. The second instrument can continue to run filter tests. In-place Tests can be easily handled up to 10 m around the trolley.
- Stainless steel, splash protected cabinet.
- It can easily carry all accessories, e.g. test adapters, cables or tubes as well as a water vessel for the WIT or for the wetting fluid.
- In-place Tests can be easily handled up to 10 m around the trolley.
- User-friendly interface that requires minimal training of operations.
- Easy to use and program.
- Automated testing.
- Filters and extremely small filters (e.g. Capsules, 50 mm Disposables, Mini Cartridges and Syringe Filters) can be easily tested directly on the "ita-02" due to a special filter holder installed on the rear of its cabinet.
- Configurable to automatically flush and drain filters.
- Maintains resolution and accuracy regardless of filter system size in the range of 0.1 to 35 litres. Tubes and cables have no influence on the test result!
- Integrated printer allows printing of test results in the place of testing.
- Up to 100 filter test programs can be stored in the instrument memory and an unlimited amount on a PC.
- Up to 40 filter test records can be stored in the instrument memory.
- Designed to 21 CFR Part II and delivered with an extensive qualification and documentation package.
- High reliability of the instrument guarantees its long operation.
