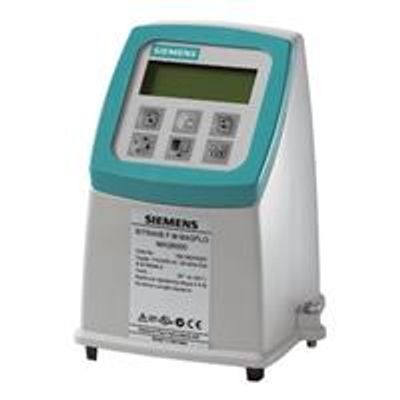

SITRANS - Model MAG 6000 -Flow Transmitter
The SITRANS F M MAG 6000 is a microprocessor-based transmitter engineered for high performance, easy installation, commissioning and maintenance. The transmitter is robust and suitable for all-round applications, has a measuring accuracy of
± 0.2% of the flow rate and can be fitted with optional plug-in communication modules. In order to have a complete flowmeter, please combine it with one of the following MAG sensors.
-
Superior signal resolution for optimal turn down ratio
-
Built-in advanced batch control
-
Comprehensive diagnostic and service menu enhancing trouble shooting and meter verification
-
SENSORPROM technology facilitates easy transmitter setup and replacement with automatically re-programming of any new transmitter without loss of data and accuracy
-
USM II platform enables fitting of add-on bus modules without loss of functionality and all modules can be fitted as true Plug & Play
- Accuracy: 0.2 % ±1 mm/s
- Input / output:
- 1 current output
- 1 digital output
- 1 relay output
- Communication:
- HART
- MODBUS RTU
- Profibus PA/DP
- DeviceNet
- Foundation Fieldbus
- Display: Background illumination with alphanumeric text, 3 x 20 characters
- Enclosure: IP67 (NEMA 4x/6)
- IP20 (NEMA 2)
- Power supply:
- 12-24 V a.c./d.c.
- 115-230 V a.c. 50/60 Hz
- Ambient temperature: From -20 to 50°C (-4 to 122 °F)
- Approvals:
- MI-001
- Danak
- PTB
- OIML R49, R75 and R117
- Ex-approvals: FM/CSA Class 1, Div 2
