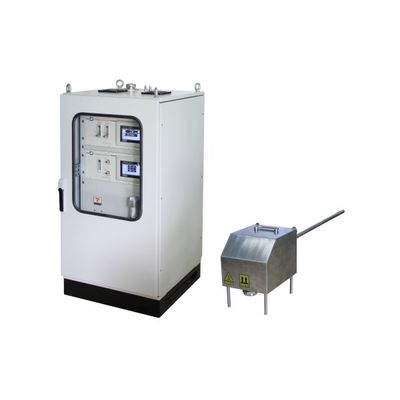

Chang AI - Model CI-XT62B1 -Flue Gas Analysis System
The system consist of (1) CI-PC711 nitrogen-oxygen compound gas analyzer; (2) CI-PU201 multi-component gas analyzer; (3) CI-R300P compressor condenser.
Most popular related searches
gas analysis
multicomponent gas analyzer
flue gas analysis system
flue gas
sampling probe
flue gas sampling
gas analysis system
flue gas analysis
emissions monitoring system
gas analyzer
- lntelligence,good stability.high reliability, o-g calioration period and so on;
- Multi-component measurement.CO and CO? concentrations were detected by infrared principle,NOx sensor detected NOx and O2 concentrations.electrochemical sensor detected SO? concentrations^nd did not interfere with each other,
- The 5-inch color capacitive touch screen is adopted as the display and input window of human-computer interaction.which is beautiful in atmosphere and has rich display content and simple operation.
- Storage data can be up to 1 year, and can be exported via USB drive
- The invention has the functions of automatic back blowing,keeping the cleaning of the sampling probe/educing the maintenance workload of the user and prolonging the service life of the sampling probe
- It has pressure monitoring to judge whether sampling is normal
- The sampling probe is made of cast aluminum heater, and the temperature of the sampling probe is controlled between 100 and 180°C.
- Gas Analysis of Gas Boiler.lndustrial Burner, On-line Industrial Engine. Steam Turbine and Flue Gas Purification Analyzer in cornmissioning,setting,optimization and working measurement
- The Control and Monitoring of Emission Limit of Exhaust Gas
- Function Comparison Test of On-line Emission Measurement Instrument
- Control and Monitoring of Combustion Chamber or Kiln Gas in Different Processes
