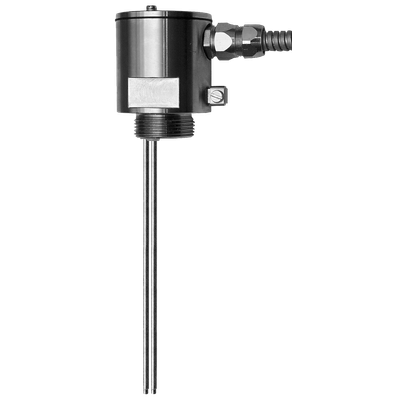

Fluid.iO - Model EE-2XF -Conductive Electrode for Overfill Protection
The EE-2XF Conductive Electrode is engineered for precise monitoring of conductive liquids within hazardous environments classified as Ex-Zone 0 (Category 1). These electrodes are essential for overfill protection and leakage detection in containers storing water-polluting and flammable fluids. They hold an EC-Type-Examination Certificate TÜV 02 ATEX 1796 X, ensuring compliance with safety standards. Each electrode can detect up to four limit heights, offering flexible application options. Constructed from stainless steel, Hastelloy B, Hastelloy C, or tantalum, they are suited for aggressive media. Additionally, the electrodes come with various connection threads and coatings. The DIBt has approved them for use as liquid level limit switches. Crucially, their design accommodates installation in environments prone to hazardous vapors, maintaining operational integrity. The EE-2XF is a robust choice for industries requiring reliable fluid monitoring and safety functions.Most popular related searches
conductivity electrode
level monitoring
water pollution
fluid monitoring
fluid measurement
liquid level switch
conductivity monitoring
level switch
hazardous liquid
liquid monitoring
Conductive electrodes EE-2XF for monitoring conductive liquids within the Ex area Zone 0 (Cat. 1) for water-polluting and flammable liquids.
- Features : EX WHG Überfüllsicherung
- product family : level measurement
- product class : overfill protection and leackage detector
- suitable for : fluids
- measurement principle : conductive
- Properties :
- connection : Edelstahl (1.4571)
- Protection class : IP 65
- Ex-protection :
- TÜV 02 ATEX 1796 X : Ex protection type
- II 1 G Ex ia IIC T6 bzw. Ex ia IIB T6 / II ½ G Ex ia IIC T6 bzw. Ex ia IIB T6
- connection thread : G1", G1¼", G1½”
- Coating length : voll=ganzer Stab (10 mm am Stabende sind blank) teil =ca. 250 mm von oben
- Rod diameter : 4 oder 6 mm
- rod length : max. 6 m
- Operating pressure media side : max. 40 bar
- Maximum permissible electrical connection values : Stromkreis in Zündschutzart Eigensicherheit Ex ia IIC/IIB
- Connection values : Ui 15V | Li 10 mA | Pi 100 mW
- Internal inductances / capacitances : vernachlässigbar klein
- Spacer : ab Länge > 1000 mm je 1000 mm 1 Abstandshalter
- Category 1 Class T6...T1 : 60 °C
- Category 2 Class T6 : Medien & Umgebung 80 °C
- Category 2 Class T5 : Medien & Umgebung 95°C
- Category 2 Class T4 : Medien 130°C, Umgebung 100°C
- Category 2 Class T3...T1 : Medien 150°C, Umgebung 100 °C
- Cable entry EE-21 : Edelstahl (1.4571)
- Cable entry EE-22: PVDF
- Electrode body material: Edelstahl (1.4571)
- Seal (head): Viton
- Seal (media side): Viton / PTFE
- Potential equalisation conductor connection: Edelstahl (1.4571)
- Material electrode rods: Edelstahl (1.4571), Hastelloy B, Hastelloy C, Tantal
- material coating: PTFE
