Fluid.iO® Sensor Control GmbH & Co. KG products

The ZT-N is a customizable low pressure sensor designed for the precise measurement of minimal pressures, ranging from -1 to 4,000 bar, making it ideal for a wide range of applications. This sensor employs piezoelectric principles and is suitable for media compatible with stainless steel, ensuring durability and longevity. It offers flexible connection designs including DIN EN and NPT standards, alongside varied analog output signal options from 0 to 10 V and 4 to 20 mA, allowing for integration into diverse systems. The device's robust and compact build supports reliable performance under various environmental conditions. The ZT-N series is configured for specific applications, offering measurement parameters tailored to ambient conditions, and is compliant with relevant industry standards. This makes it a versatile choice for precise pressure monitoring in gases and fluids across different industrial sectors.

The KS-17 Digital Climate Transmitter is engineered for precise measurement of temperature and relative humidity, utilizing a capacitive measurement principle. It integrates temperature and humidity sensing into a single, compact sensor element suitable for gas applications. Featuring I2C digital protocol, the sensor offers seamless integration with microcontroller systems, making it ideal for technically demanding environments that require versatility in connection designs. The KS-17's compact construction is facilitated by innovative sensor technology that supports a variety of electrical connections and enables smaller form factors. This transmitter is enclosed within a durable plastic housing, allowing it to withstand various environmental conditions during operation. It finds extensive use in industrial and commercial applications where accurate climate monitoring is critical.

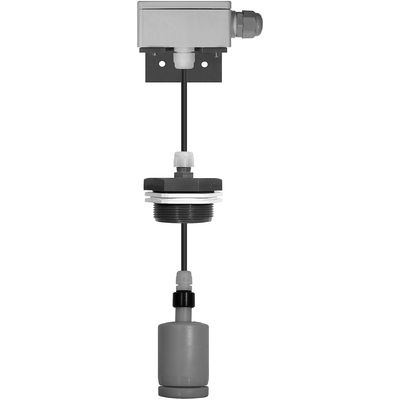

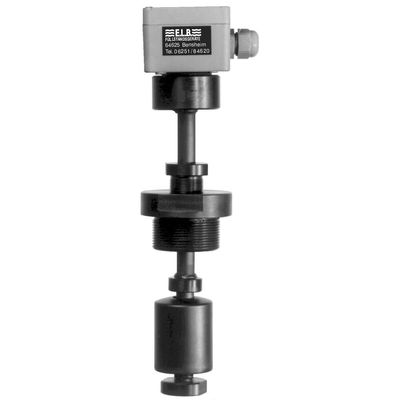

Level sensors type T-20_.F... are approved by the DIBt (German Institute for Structural Engineering) as liquid level limit switches for the overcharge protection of containers for storing water-dangerous liquids. The floater switches the reed contact mounted in the guide tube when the liquid level rises. The change in resistance in the sensor circuit resulting from the switching operation is evaluated and the output relay triggered. Parts of the level sensor which get into contact with the media are completely made of PE, PP, PVC, PVDF. So the level sensors T-20_.F... are perfectly suited for being used with tanks for storing highly aggressive media.

Level sensors type T-20_.F...(24 V) are approved by the DIBt (German Institute for Structural Engineering) as liquid level limit switches for the overcharge protection of containers for storing water-dangerous liquids. The floater switches the reed contact in the guide tube when the liquid level rises. The change in resistance in the sensor circuit of the contactor relay KR-24V resulting from the switching operation is evaluated and the output relay triggered. Parts of the level sensor which get into contact with the media are completely made of PE / PP / PVC / PVDF. So the level sensors T-20_.F...(24 V) are perfectly suited for being used with tanks for storing highly aggressive media. The evaluation device ET-520 [KR-24V] or ET-521 [KR-24V] is installed directly in the connection head.

The T-200.L (24 V) leak detectors are approved by “DIBt” on the basis of “WasBauPVO” for the detection of leaking fluids which constitute a risk to water. The T-200.L (24 V) leak detectors can be used as leak detectors in the space between a tank and its accompanying drip tray. The evaluation device ET-520 [KR-24V] or ET-521 [KR-24V] is installed directly in the connection head.

The T-200.L (20...230 V AC/DC) leak detectors are approved by “DIBt” on the basis of “WasBauPVO” for the detection of leaking fluids which constitute a risk to water.

The DSM2420 sensor is engineered for precise and simultaneous measurement of flow velocity and filling level in both open and accessible closed channels. Built from specialized plastic, it exhibits robust resistance to aggressive media typically found in water and wastewater environments. The sensor employs an ultrasonic measurement principle and is compatible with various types of sewers thanks to adaptable stainless steel mounting shoes. For fill level measurement, it requires floor mounting. It is designed for use in explosive (EX) atmospheres when paired with the FDL400 measuring device integrated with a Z-barrier. The sensor is IP68 rated, indicating its high resistance to dust and immersion in water. This makes it ideally suited for industrial and environmental applications where reliability and accuracy in harsh conditions are crucial.

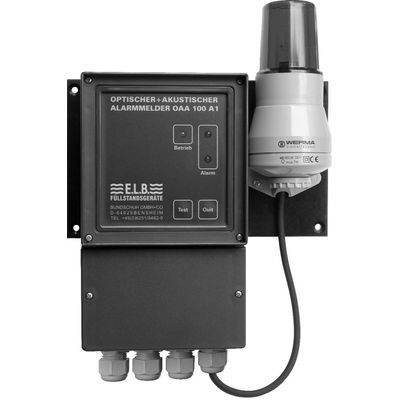

Our alarm indicators type OAA-100.A1 are stand-alone signaling devices with optic and acoustic alarm indication. Combined with a liquid level sensor (e.g. T-200.F...) and a leak detector (e.g. T-200.L...) the OAA-100.A1 can be used as a local monitoring device of a tank. OAA-100.A1 records the limit-value signals of the connected level sensor / leak detector and releases an acoustic signal (acceptable) and an optical signal (not acceptable).

Our alarm indicators, type OAA-100.A3, are signalling devices with optical and acoustic alarm indication from an overfill cut-out device or a leak detector. In addition to level sensors with an interface, closed-circuit loops can also be connected as transmitters. On two voltage-free output contacts of the alarm annunciator it is possible to connect an optical and an acoustic warning device.
