Kanomax Fluostar - Fluorescent Seeding Particles

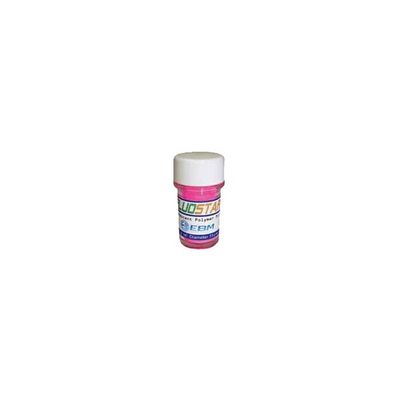

FLUOSTAR microspheres are polymer particles encapsulating the fluorescent dye, Rhodamine B, which emits the orange-colored fluorescence when illuminated by a green-colored laser (e.g. Nd:YAG, Nd:YLF). FLUOSTAR feature the outstanding emission efficiency of fluorescence, which are best suited for PIV applications. The strong orange-colored fluorescence may be even observed by sight using a 5 mW laser pointer.
Most popular related searches
fluid mechanics research
NIST traceable calibration
laser pointer
traceable calibration
research instrument
respiratory protection
NIST calibration
TDS
- Moderate size dispersity
- Uniform spherical shape
- No swelling or shrinking
- Minimal photobleaching
- Minimal dye leaking
*Annual NIST TRACEABLE CALIBRATIONS are performed at our facility in Andover, NJ.
- Single-phase liquid flows
- Multi-phase flows
- Industrial large-scale flows
- Near-wall flows
- Stereo PIV
Fluostar
Specifications
- Substrate Material: Carboxy-modified acrylate resin
- Refractive Index: 1.560 (polymer)
- Temperature: Resistant up to 100 Celsius (polymer)
- Fluorescence dye: Rhodamine B (Excitation 550 nm / Emission 580 nm)
- Density: 1.1 g/cm3
- Diameter: 15 um (Uniform spherical shape)
- Size Uniformity: Less than 20% C.V.
- Particle Life: 2 year
- Storage: Store at room temperature in a dry area. Bottle should be tightly sealed.
- Handling: Glove and respiratory protection are recommended/td>
- Sizes: 1, 5, 10, and 50g
