Flydog Charlie - Small Data Buoy
Flydog’s data buoy is equipped with sensors to measure parameters specified by the customer (temperature, salinity, microbiology, etc). The sensors are fixed to the buoy or hung below the buoy at desired depths. The collected data is sent to client’s FTP or Flydog’s cloud server for further processing. Multiple data transfer protocols are supported. The waterproof cargo bay can carry different measuring, surveillance and data equipment. Built-in GPS makes sure that the location of the devices is always known and tracked. Flydog’s buoys can be integrated with various sensors chosen by the client. It is also possible to add a weather-station. The buoy is equipped with marine grade solar panels which makes it autonomous for working during the whole season without having to go to the deployment site to replace the batteries.
Multiple Sensors
Sensors can be securely attached directly to the buoy or suspended beneath it at designated depths to ensure accurate data collection.
Light Weight
Charlie data buoy weighs 80 kg and can be deployed and serviced with small boats. The platform can be configured using a range of variations.
Real-Time Data
Data collected is transmitted securely to the client’s FTP or Flydog’s cloud server, multiple data transfer protocols supported for flexibility.
- Dry weight: 80 kg
- Height above water: 1.15 m
- Height below water: 1.25 m
- Width: 0.7 m
- Datalogger: Flybox
- Solar panels: 3x20=60 W
- Battery: LiFePO4, 40 Ah

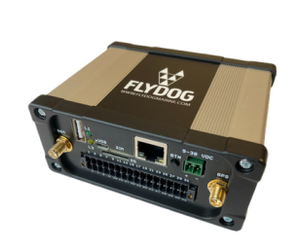

FlyBox is an intelligent, configurable hardware platform that merges a hardware controller with data logging capabilities. It supports multi-vendor sensor I/O and offers two-way communications, tailored for enduring performance in any location or environment.

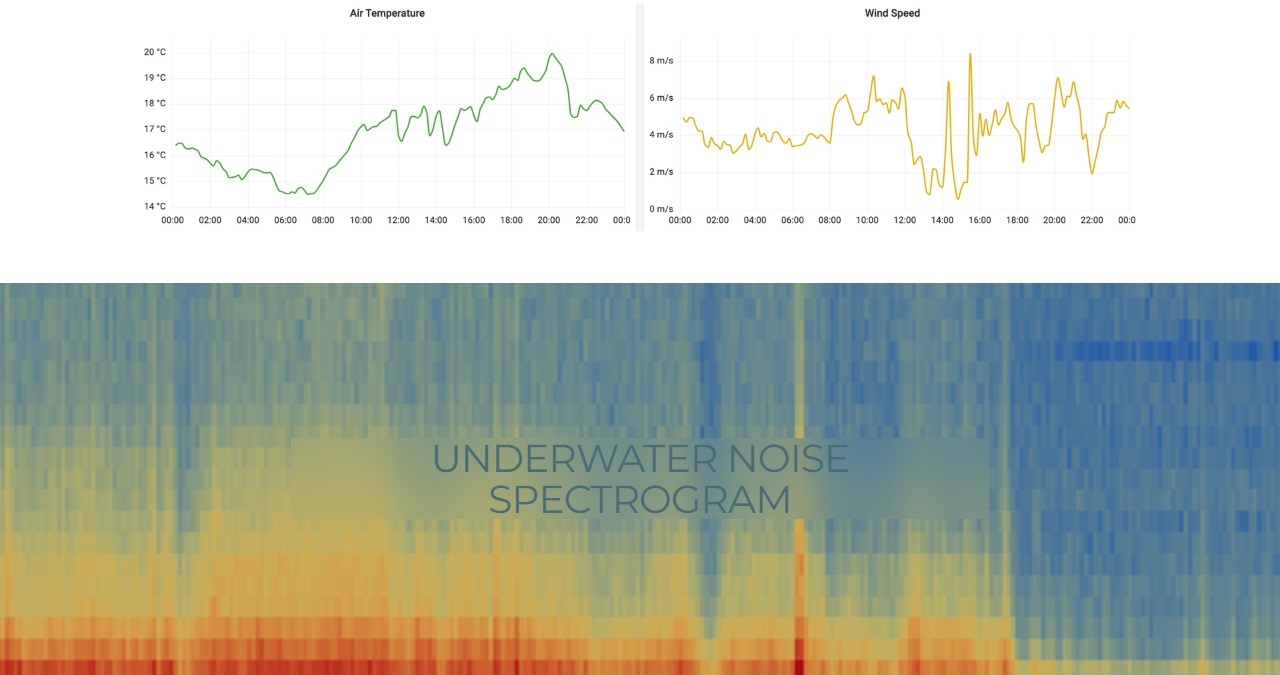

Flydog provides powerful software applications and web-based cloud services. Developed in-house using the latest computing and web technologies, it is designed for comprehensive data management and infrastructure monitoring/control. The platform features a user-friendly interface, accessible via web or software application, designed to simplify interaction for end-users.
- Dry weight: 80 kg
- Height above 1.15 m
- water Height: 1.25 m
- below water: 0.7 m
- Width
- Profiling depth: Flybox
- Datalogger: 3x20=60 W
- Solar panels: LiFePO4, 40 Ah
- Battery Communication: 4G, GPS
