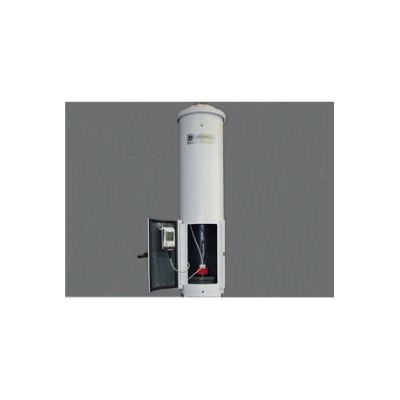

Eigenbrodt - Model ANES -Fog Sampler

All types of Eigenbrodt fog sampler feature the same principle of collection: Fog water is collected with a sampler operating on the impactor principle (see figure). The air is sucked at a rate of rd. 125 m³/h through a twin nozzle behind. Droplets are been excellerated. They slash onto a specially designed deposition body, where the water is captured and flows down into a collection body.
