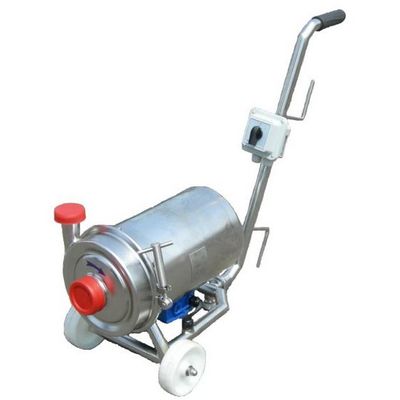

Spomasz-Zamosc - Model GA-12 -Food Pump

A classic pump that has been used in diary systems for several dozen years. Reliable: its structure and the inner body shape guarantee long life of the mechanical seal.

Transport food liquids, in particular:

• milk,
• juice,
• acids and alkalis*,
• water,
• other liquids.

It can be washed as part of other machines and devices.

*after material set is agreed on

• Single stage centrifugal pump of monoblock construction. The pump rotor is mounted on the extended motor shaft. The rotor construction is closed.
• Material used for the pump construction: Acid-proof steel 1.4301 (AISI 304).
• Single mechanical sealing.
• Rubbing couples:
• impregnated carbon/silicon carbide,
• silicon carbide/silicon carbide,
• impregnated carbon/ceramic.
• Rubber materials:
• Ethylene propylene EPDM
• Fluoroelastomer (VITON)
• Nitrile (NBR) Other sealing materials available by request.
• Connector pipes according to PN - suction DN50 (Rd68) and pumping DN40 (Rd 55) or according to DIN 11851 - suction DN50 (Rd 78).
• The pumps are certified for use in the food industry, and have a declaration of conformity issued and CE certification.
