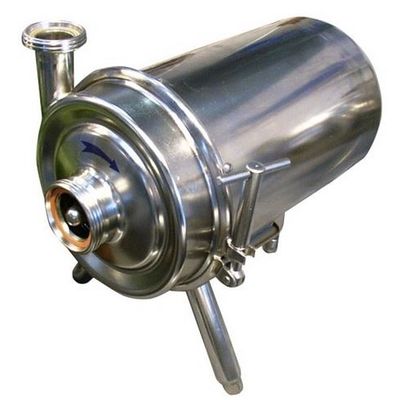

Spomasz-Zamosc - Model GA-13 -Food Pump
Pumping capacity of 16,0m³/h, with a lifting height of 15,0mH2O and drive power required of 1,5kW.
Most popular related searches
centrifugal pumping
centrifugal pump
silicon carbide ceramic
monoblock pump
pipe connector
acid water
acidic water
centrifuge
suction pump
parts washing
A classic pump that has been used in diary systems for several dozen years. Reliable: its structure and the inner body shape guarantee long life of the mechanical seal.
Transport food liquids, in particular:
- milk,
- juice,
- acids and alkalis*,
- water,
- other liquids.
It can be washed as part of other machines and devices.
*after material set is agreed on
- Single stage centrifugal pump of monoblock construction. The pump rotor is mounted on the extended motor shaft. The rotor construction is closed.
- Material used for the pump construction: Acid-proof steel 1.4301 (AISI 304).
- Single mechanical sealing.
- Rubbing couples:
- impregnated carbon/silicon carbide,
- silicon carbide/silicon carbide,
- impregnated carbon/ceramic.
- Rubber materials:
- Ethylene propylene EPDM
- Fluoroelastomer (VITON)
- Nitrile (NBR)
- Other sealing materials available by request.
- Connector pipes according to PN - suction DN50 (Rd68) and pumping DN40 (Rd 55) or according to DIN 11851 - suction DN50 (Rd 78).
- The pumps are certified for use in the food industry, and have a declaration of conformity issued and CE certification.
- capacity * [m³/h] 16,0
- lifting height * [mH2O] 15,0
- suction height [mH2O] 2,0
- temperature of pumped liquid [°C] 95
- rotor diameter [mm] 124
- drive motor type - SKg 90S-2 M
- motor power [kW] 1,5
- rotation of engine (50Hz) [min-1] 2840
- rated current/voltage [A/V] 3,3/400
- mass [kg] 31,6
