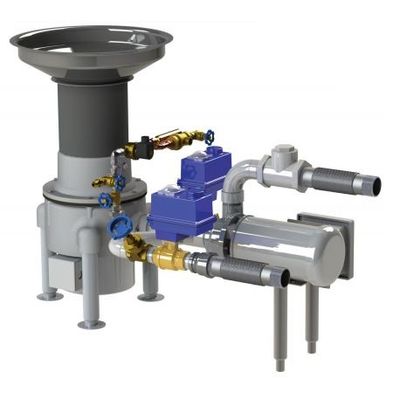

Somat - Model D-5 -Food Waste Grinder
The Somat D-5 Food Waste Grinder is one part of a Remote Pulping System. Somat food grinders are engineered to process food waste and are typically placed in pot and pan washing and food prep areas. Standard features include a 5 HP drive motor and return pump. The main benefits of a Somat Remote Pulping System are Reduction and Transportation. A remote system connects food prep and scrapping areas together through a series of piping and transports food service waste to a remote extractor. The extractor removes the solids (pulp) and recirculates the water back to the grinding tanks. The pulping process provides an 8 to 1 volume reduction (up to 85%.) The pulp is fed into a Somat Dehydrator for additional reduction or directly into a dumpster. A remote pulping system reduces the need for trash cans, liners and laborers to “take out the trash”.
400 pounds per hour of food waste only.
Food Grinder:
- 5 HP continuous duty motor with shaft extension, 3⁄4" wrench flats to externally de-jam
- Adjustable 105⁄8"diameter rotor/turntable beveled at a 45° angle with 6 integral impact breakers constructed of hardened ductile steel alloy for long life use. Matching 45° sizing ring with 24 grinding teeth.
- 81⁄4" throat opening with dual directional operation, doubling the life cycle of the cutting mechanism.
- Grinder connects to Cone or Sink Assembly by means of a neoprene isolation sleeve and (2) stainless steel clamps.
- Stainless steel legs and feet, adjustable from 0" to 2".
- Foreign matter without special tools.
- Thermal overload protection with manual reset button
Valve Package:
- Pre-piped valve package assemblies to include all valves required for proper operation.
Som-A-Trol (Electrical Control Panel):
- UL approved, Includes all necessary power, control and water level components prewired to a terminal strip. Push button station in a NEMA 4 stainless steel enclosure
Options
- Sink adapter w/ silver saver
- 3 or 5 HP return pump
Voltage Options
- 208/60/3
- 230/60/3
- 460/60/3
- International options available, consult factory
Finish
- Basic body components are cast gray iron, machined, primed and powder coated.
