IMC - Model CR -Food Waste Station

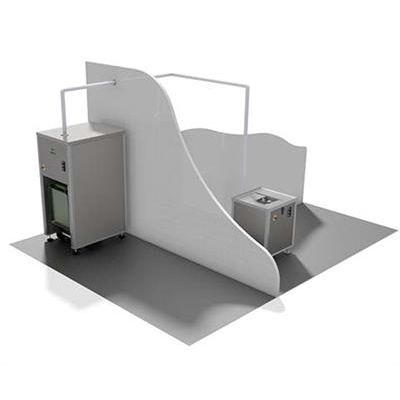

Food waste comprises of up to 80% liquid and can be extremely costly to dispose of. WasteStation CR combines an inlet station, which can be sited in the kitchen area, to grind the food waste into fine particles. These particles can be pumped up to 55m away were they are fed into a remote dewatering system. Through centrifugal action, the dewatering system forces out the excess liquid from the macerated waste. This “grey water” is fed directly to drain; the resulting solid fraction of the food waste is collected in 240 litre bins, ready for collection and onward processing.
The WasteStation CR combines an inlet station for maceration, pumping system and remote dewatering system. This new unit is intended for integration in a wide variety of kitchen sizes; it is used for the disposal of organic kitchen waste and offers dewatering and waste reduction options where distance, labour or space restrictions are an issue.
The WasteStation CR offers the following benefits:
- Compact Design: The small footprint of the inlet station ensures minimal use of kitchen space.
- Ultimate convenience: By locating the remote dewatering unit away from the kitchen area waste does not have to be transported manually from the kitchen.
- Transport Savings: Reduce waste collection costs by up to 80% by reducing the food waste volume and weight requiring collection.
- Storage Savings: By reducing the waste volume, on site waste storage facility requirements are also reduced.
- Labour Savings: The self cleaning system reduces staff time managing and processing any food waste.
- Energy Savings: Compact design and short processing times ensure low operating costs and minimal use of kitchen floor space.
Part No.:
- Inlet Station - Macerator and Pump F79/030
- Remote Dewatering Unit - Dewatering unit and Collection Bin F78/060
Dimensions
- Inlet Station (H x W xD) 900 x 700 x 700
- Remote Dewatering Unit (H x W xD) 1876 x 839 x 1055
Electrical Information - Inlet Station
- Electrical supply 3 phase 400v 50hz
- Amps 13.5 amps
- Water supply 1 off ½” cold water supply
- Macerator motor 2.2kW
- Pump motor 1.1kW
- Pumping Distance 55m
Electrical Information - Remote Dewater
- Dewater motor 1.1kW 3HP 1.1kW
- Drainage connection 2” outlet
- Self cleaning option YES
- Water supply 1 off ½” hot / warm water supply
- Amps 5.5 amps
- Drainage connection 2 “ UPVC waste connections
