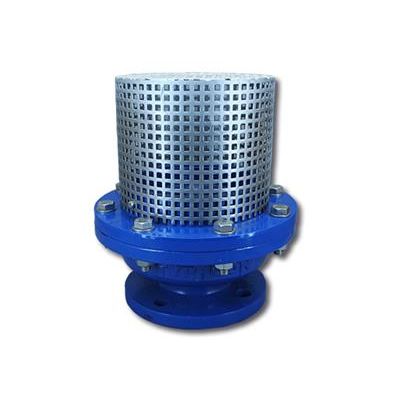

Typhoon - Foot Valve for Suction Pumps

TYPHOON Foot Valves are valves that are mounted on the suction line of the suction pumps and prevent the return of the water in the system, as a result of the combination of the filter and the clapper. Thanks to the glob design, the pressure loss goes down to a minimum and the water continues to flow without deterioration. The filter in the valve prevents particle entering the system and ensures that the water transferred to the pump is clean. It prevents the pump from becoming dehydrated when it is started. The flap in the body prevents backflow to the pipeline and discharge to the pipeline. Rated Pressure: PN10 – PN16
