CBG BiotechModel PathTrue -Formalin Recycler

SHARE

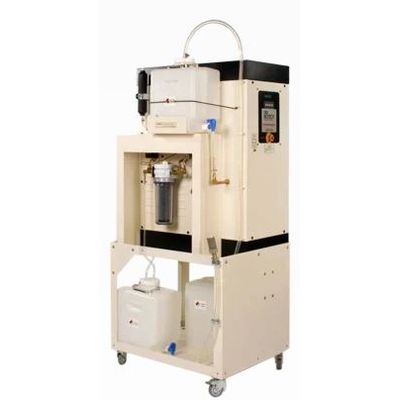

PathTrue Formalin Recyclers are a fully automatic fractional distillation systems for recycling formalin in pathology and histology laboratories. Save your lab time and money by recycling formalin for reuse. PWV Series solvent recyclers can process solvents including mineral spirits, D-Limonene, thinners, DPM/TPM, naphtha, xylene and other solvents used for parts washing. Achieve sustainability and cost savings in your facility with solvent recycling. The PathTrue Formalin Recycler is a mobile cart-mounted fractional distillation recycler for formalin.

Most popular related searches
  • Recycle formalin at approximately 120 minutes per gallon
  • Spill containment and leak prevention design
  • No cool-down between runs
  • No hot surfaces - cool to touch
  • Microprocessor controlled; fully-automated formalin recycling process
  • Automatic waste disposal
  • No water hook-up or special ventilation required

Capacity

5 gallon (20 liter)

10 gallon (40 liter)

Dimensions:

24.25" W x 67" H x 30.5" D (62 cm W x 170 cm H x 77 cm D)

Plus 4" (10 cm) shroud on side

Cycle Times:

Approximately 120 minutes per gallon

Electrical Configurations

120 VAC, 15.0 A, 50/60 Hz

220 VAC, 7.5 A, 50/60 Hz

240 VAC, 8.2 A, 50/60 Hz

Compliance with:

ETL listed to UL61010 and UL2208
