Fote - Rod Mill

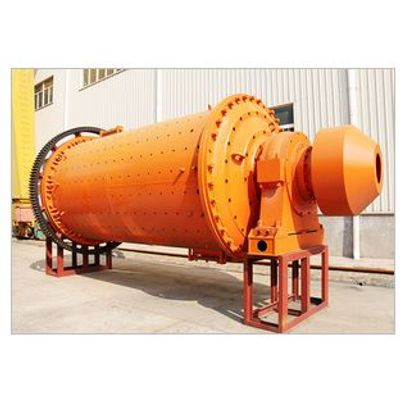

The Introduction of Rod Mill

Rod mill adopts steel bars as the grinding medium in the cylinder, which is mainly used to smash all kinds of ores and raw materials, particularly a variety of brittle materials. It is commonly used in ore dressing industry, machinery industry and chemical industry and other fields. Rod mill has many advantages such as high yield and uniform discharging size, which is suitable for different hardness of ores. Rod mill has dry and wet types to be chosen. Customers can choose the appropriate type according to your actual conditions. Due to its grinding medium, rod mill is also called grinding rod mill and rod grinding mill.

The Features of Rod Grinding Mill

During the grinding process of rod mill, the grinding medium and ore are line contact, thus it has a certain selective grinding effect. The particle size of the product is more uniform with low grinding rate. For coarse grinding, the processing amount of rod mill is greater than the ball mill with the same specification, and vice versa.

• Rod mill for sale by Fote Machinery is suitable for grinding various ores and other materials, which is widely used for grinding operations in refractory industry, chemical industry, metallurgy industry, glass and other industries. The requirements of finished particle size are relatively high. In recent years, it is also used in sand making industry.
• The gravity or magnetic separation plants of tungsten, tin and other rare metal ores often adopt rod mill in order to prevent the harm caused by over crushing.

The rod mill is driven by the motor through the reducer and the big gear around it or by the low-speed synchronous motor directly through the big gear around the rod mill to drive the cylinder rotation. The cylinder is equipped with appropriate grinding medium-steel rods. Under the action of centrifugal force and friction , grinding medium is lifted to a certain height and fall. The grinding material continuously entered the cylinder body by the feeding device, crushed by the grinding medium, and discharged from the machine by the overflow and continuous feeding force, so as to carry out the next stage of operation.
