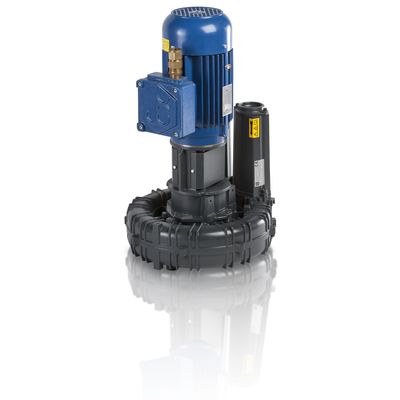

FPZ - Model GOR/GVR_IE3 - MD -Side Channel Blowers
The single impeller double stage blower family was designed as a natural evolution of MS, to allow an increase in the pressure / depression level. Characterized by similar dimensions to MS, therefore compact in size, MD represents the product family with the lowest energy consumption for the same performance.
The GOR and GVR models are version with elastic coupling installed between blower and electric motor (IEC / NEMA). The machine is completed by a base for a horizontal (GOR) or vertical (GVR) rotation axis operation.
All FPZ blowers come equipped with IE3 motors, designed and manufactured according to the directive Ecodesign 2009/125/CE (CE n.640/2009 and UE n. 4/2014) and according to (including future variants) EN 60034-30-1, EN 60034-2-1. These Motors are also designed to perform safely under a wide range of voltages (Wide Range). The IE3 motors also comply to the cURus standard or certification for the Canadian and USA market.
Some industries and application fields:
- Energy: Syngas for Cogeneration Plant, Methane Gas Compression
- Food & Beverage: Filling Machines, Milking Machines, Pick & Place, Silo Fluidification
- Water treatment: Biological Treatment Plants, Backwashing Filters, Air Lift
- Wellness & SPA: Backwashing Filters
- Pulp, Paper & Printing: Packaging
- Ceramics: Pick&Place
- Industrial cleaning: Vacuum Oil Removal
- Type: air
- Technology: side-channel
- Number of stages: double-stage
- Other characteristics: aluminum, explosion-proof
- Flow rate:
- Min.: 0 m3/h (0 ft3/h)
- Max.: 570 m3/h (20,129 ft3/h)
- Operating pressure:
- Min.: 0 mbar (0 psi)
- Max.: 650 mbar (9.427 psi)
- Nominal power:
- Min.: 3 kW (4.08 hp)
- Max.: 15 kW (20.39 hp)
