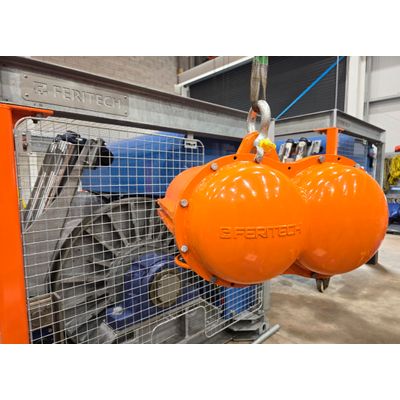

Feritech - Model FT5500 -Frameless Vibrocorer
The Feritech FT5500 Frameless Vibrocorer is a compact, rugged unit. It’s is easily shipped via a single ISO pallet. It has a variable vibration of between 30—60Hz and has a maximum thrust of 50kN. The unit is controlled via the FT554 Top Side Unit for simple and easy to use controls. The standard system is rated to 2000m making it ideal for a projects with a wide range of depths. For operations taking place in deeper waters, a deep water variant is available.
- Compatible with Type A & B core barrels
- Depth rating: 2000m
- 8kW power
- 50kN of thrust
- 30—60Hz variable frequency
- Fully electric operation via topside variable frequency drive
- 3 Phase 400-440V power supply 50-60Hz
- Can be shipped on a single ISO pallet
Feritech offers a comprehensive range of high-performance geotechnical survey systems, all designed, manufactured, and tested to the highest standards by our expert UK-based team. Many products are available ex-stock for purchase or hire, with global delivery and full technical support ensuring exceptional reliability and performance.
Here to help
Our systems are ready to operate straight out of the box and can be mobilised within hours. Every Feritech product can be customised to meet specific project requirements. If your application demands a bespoke solution, our team will be happy to assist.
