JAG - Model PVI+ -Framework for Operation and Monitoring System

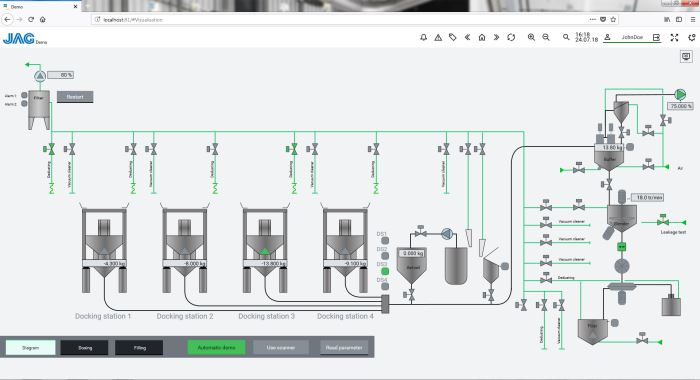

The visualization JAG PVI+ is a web-based module of the JAG MES framework for operation and monitoring. Already existing PCs, touch panels and pads can be used to operate and monitor a system. An installed and updated web browser is sufficient. A process plant can be represented in the form of an animated P&I diagram. Historical data can be easily accessed (with JAG Historian as data source). User dialogs for manual intervention by plant operators are also part of process visualization.
