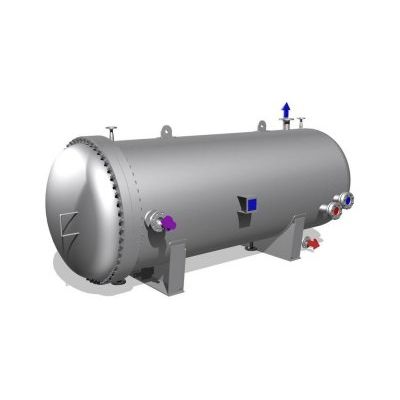

Franken - Model PTG -Phase Separator
PTG Phase Separators separate droplets of d > 50 µm (e. g. caused through agitators/flows) from a liquid-liquid dispersion with high density difference and low viscosity from the main phase. PTG Phase Separators are optimized in terms of flow and residence time. They are used for the coarse pre-separation and as independent phase separator.
The gravitation separators are equipped with special flow distributors at the inlet. These ensure a constant flow velocity throughout the entire cross-section of the vessel and guarantee through this a maximum residence time in the phase separator. The coarse droplets flow to the liquid-liquid interface through gravity where it comes to a droplet-interface coalescence.
We design according to our customers’ requirements with our calculation programs:
- Dimensions of the flow distributor
- Required settling volume.
