Rotajet - Friction Plastic Washers

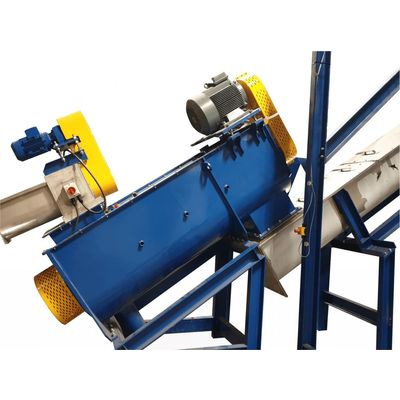

Rotajet Plastic Friction Washers are used to wash highly contaminated plastic films, PET and rigid bottle granulate. Normally the Rotajet friction washers are located after wet granulation and prior to Rotajet float sink tanks. The Rotajet friction washer consists of a high-speed rotor mounted by two bearings, top and bottom, with a full hexagonal screen around the rotor. The rotor and screen are housed in a robustly manufactured frame that is mounted on an incline. The liquid and plastic granulate mix from the wet granulator is fed into the base of the Rotajet friction washer. High-speed rotating paddles force the liquid and granulate mix to the outside screen, forcing the liquid and contaminants to pass through the screen. The plastic granulate is driven up the screen at high speed to the material outlet at the top.The Rotajet friction washer consists of a high-speed rotor mounted into housing by two bearings top and bottom, around the Rotor, there is a full hexagonal screen. The rotor and screen are housed in a robustly manufactured frame that is mounted on an incline.
The liquid and plastic granulate mix from the wet granulator, is fed into the base of the Rotajet friction washer. High speed rotating paddles force the liquid and granulate mix to the outside screen, forcing the liquid and contaminants to pass through the screen. The plastic granulate is driven up the screen at high speed to the material outlet at the top.
The screen is fitted with outside spray bars to keep the screen clean and free of plastic dust and paper pulp. For highly contaminated material a pneumatic screen scraper can be fitted to scrape the screens clean, this is used in conjunction with the spray bars.
The Rotajet friction washers are manufactured with easy to replace D2 paddles, and quick release internal screens.
