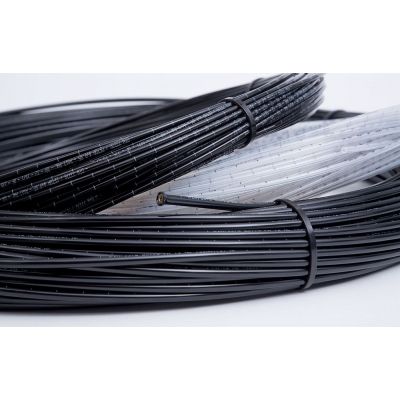

Fritsche - Model PA 12 PHL -Plastic Tubes
Plastic tubes semi-rigid - flexible PA 12 HL, PA 12 PHL. DIN 73378: Operative pressure for Ø 4 x 0,85 and 23°C: approx. 1044 PSI / 7 MPA / 72 bar. Operative pressure for Ø 6 x 1,25 and 23°C: approx. 1015 PSI / 7 MPA / 70 bar . Operative pressure for Ø 6 x 1,5 and 23°C: approx. 1291 PSI / 9 MPA / 89 bar.
Most popular related searches
Our plastic tubes / tube lines are used in lubrication systems to connect the progressive distribution unit with the lubrication point or the relubrication distributor (or piston distributor) to the lubrication point.
- Material properties: Both plastic tubes (PA 12 HL and PA 12 PHL) are free of plasticisers, and resistant to light or heat-induced ageing.
- Permissible media:
- Excellent resistance to oil, grease and lubricants, and to all types of fuels and chlorine-free cleaning agents and solvents.
- Application for other media than those stated above, only upon request!
- Permissible operating temperature: ca. – 60 °C bis + 80 °C
- Plastic tube, semi-flexible: PA 12 HL
- Plastic tube, flexible : PA 12 PHL
- Standard: DIN 73378 + Cetop
- PA 12 PHL , natural-coloured or transparent with black print; either unfilled or filled with NLGI viscous oil, class 000.
- PA 12 HL are black with white print, They are either unfilled or filled with NLGI viscous oil, class 000, or NLGl grease, class 2.
