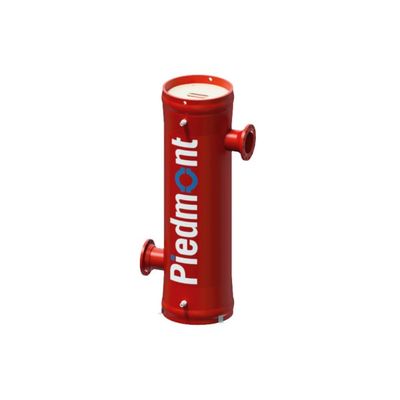

Piedmont - Model SQ/SX-Style -FRP Basket Strainers
FRP Piedmont Basket Type Strainers are perfect solutions for preventing relatively bigger particles to pass into the main pipe line in order to protect the expensive and fragile equipment such as pumps, flow meters, nozzles and valves which could stop functioning in case of solid particle accumulation. Primary areas of application, but not limited to, could be Heating and Cooling Systems, Side Stream Filtration Systems, Sewage Lines.
Most popular related searches
side stream filtration system
basket strainer
pump flow meter
pipe lining
flow meter
cooling system
basket filter
filter element
glass fiber reinforced polyester
wedge wire mesh
- Housing made in FRP (fiber glass reinforced polyester)
- Baskets made in Superduplex for high corrosion resistance
- EN13121 or ASME X design
- Flow rates from 100 gpm to 15000 gpm
- Pipe sizes from 2” to 24”
- Standard design pressure 150 psi. higher pressures are available
- Available with wedge wire and mesh liners.
- Swing bolt closure for quick opening available under request
- Davit arm for larger vessels to facilitate the removal of the basket
- Shell & cap / Main body: FRP
- Closure cover plate: FRP/SS316
- Suport legs: FRP/SS 316
- Inlet flange: FRP
- Outlet flange: FRP
- Air vent: FRP/PP
- Clean drain: FRP/PP
- Tube sheet: PVC/FRP
- Lifting lugs: FRP
- Closure bolts: SS 316
- Basket Filter Element: PVC/SS316/Superdeplex
