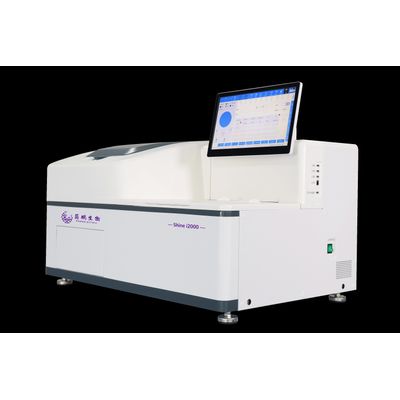

Fapon Biotech - Model Shine i2000 -Full AutomatedCLIA Analyzer

Accurate

Built-in 10-12 point calibration curve with 2-3 point verification

CV<3% within a batch

Convenient

Stat sample first

3hrs walk away capacity

Compatible

Compatible with different CLIA assay protocols

Versatile reagents and consumables touse in different Shine family

Compact

Small benchtop design

Innovative

50+patented technologies

Principle: Magnetic particles based enzyme or direct chemiluminescence immunoassay

Throughput: Up to 200 T/H

Time to First Result: ≤15mins

Sample Feeder: By sample rack

Sample Capacity: 60 (10 samples per rack with 6 racks)

Sample Probe: Steel probe for both sample & reagent, Clot, bubble & liquid level detection

Sample Material: Serum/Plasma/Urine

Sample Volume: 10-100μL

Carryover: <10 ppm

Sample Dilution: 1:2 ~ 1:40

Barcode: Code 39; Code 128; Codabar (USS); Interleaved 2/5W

Reagent Disk: 25 positions, continuous laoding during test(???)

Cooling System: 4-10ºC

Reagent Mixing: Non-touch rotated mixing with magnetic particles

Reagent Volume: 10-100μL/ group

Reagent Material: 100% ready-to-use liquid reagents

Evaporation Control: Anti-evaporation cover

Calibration Mode: Optional

Substrate Bottle: 500 tests

Substrate Loading: 2 bottles to load continuous during test

Wash Buffer: 2 bottles, 10L/bottle

Solid Waste: 500 cuvettes per container

Liquid Waste: 1 barrel

Operating Temperature:10-30 ºC

Humidity: ?85% (noncondensing)

Altitude: -400m~2000m

Reaction Volume/Test: ≤400μL

Reaction Carousel:90 positions

Reaction Temperature: 37±0.3°C

Reaction Time: Depending on assays

Reaction Mixing: Non-touch vortex mixing

Power Requirements: 100-240V, 50/60Hz:

Power Input:1000VA

Dimensions (mm): 1000L*670W*640H

Weight: ≤150kg
