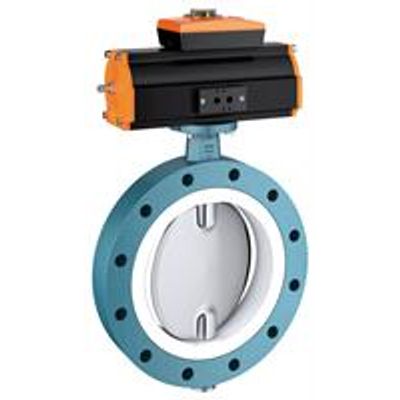

EBRO ARMATUREN - Full flange butterfly valve Z 014-WN
Thanks to their design and material diversity, centrally mounted, resilient seated shut-off and control valves are almost universally usable. Whether the medium is water, powder or gas - with a broad range of materials, we can offer you the optimal solution for your application.Most popular related searches
Nominal diameter: DN 50 - DN 600
Flange connection: EN 1092 PN 10 special drilled holes upon request
Flange surface design: EN 1092 form A/B, ASME RF, FF
Top flange: EN ISO 5211
Marking: EN 19
Tightness check: EN 12266 (leakage rate A), ISO 5208 category 3
Working standard: EN 593
Temperature range: -10°C to + 200 °C (depending on pressure, medium and material)
Max. operating pressure: max. 10 bar
CE marking number: 0036
TUEV number: 9001:2008
