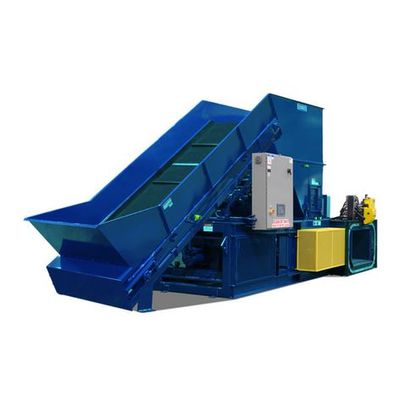

MAX-PAK - Full Size Two Ram Baler
The MAX-PAK Two-Ram baler is the fastest and most productive machine in the MAX-PAK lineup, capable of baling over 14 tons per hour (newsprint, model 2R7510) at cycle times as low as 10 seconds. And because it can bale a variety of materials, it could very well be the only baler you’ll need in a high production environment.
- Cycle times from 10 to 13 seconds, depending on model
- Bale size 45″ x 30″ x 60″
- Bale weights up to 1600 lbs. for newspaper; up to 1,000 lbs. for P.E.T., up to 1500 lbs. for bulk OCC
- Packing force from 130,690 lbs. to 235,620 lbs. depending on model
- Operating pressure from 2600 psi to maximum of 3,000 psi
With cycle times as low as 10 seconds (no load) and a bale size of 47 cubic feet, the MAX-PAK Two-Ram can handle almost 16,000 cubic feet of material per hour. If you’re baling conditioned newspaper, that’s over 14 tons per hour.
If you’ve got a big job to do, the Two-Ram is your baler of choice.
- Generous hopper openings can handle oversized materials with ease, and without the need for shredders or fluffers.
- Three-wall bale chamber and extended ram penetration maximizes bale density while maintaining bale integrity.
- Automatic eject, can be configured for left hand or right hand.
- Automatic wire-tie system will secure bales with as many as 13 straps per bale. You’ll use less labor to produce bales faster – bales with integrity that stack and transport easily, for higher profit margins.
- Hydraulic regenerative circuit and air/oil cooler deliver faster, cooler cycle times.
Heavy Duty construction, with only the highest quality components.
- The foundation of MAX-PAK’s legendary strength starts with the tubular steel frame. We build it so strong that the base frame of a MAX-PAK baler has never been bent or distorted when used in accordance with specifications, as intended.
- Heavy gauge abrasion resistant steel is used in high stress areas, like the packing platen, floor and side walls.
- Cylinders are trunion mounted for extra strength and protection.
- Electrical systems meet higher standards than other balers, and hydraulic systems are engineered to withstand 5,000 psi, well beyond the machine’s peak demand of 3,000 psi. This “over-engineered” philosophy means the MAX-PAK Two-Ram baler will run cooler and more efficiently, and cooler hydraulic systems perform better and last longer.
- 350-400 gallon oil reservoir also ensures that hydraulic oil will remain cool, preventing premature wear of hydraulic components.
Safety is foremost with the Two-Ram baler as it is with the entire MAX-PAK line. It’s why we offer operator training with every installation, so your crew will know the proper – and safe – way to operate the machine. In most cases, a properly trained 18 year old* employee can safely operate the MAK-PAK Two-Ram baler. (*The American National Standards Institute (ANSI) requires baler operators to be at least 18 years of age.)
- Safety starts with MAX-PAK’s heavy duty construction, including our heavy wall tubular steel frame, trunion mounted cylinders, and AR400 floor and platen for extra strength.
- Each MAX-PAK baler is designed to far exceed minimum standards for stress and pressure. Our culture of over designing our machines creates an incredibly strong, safe baler.
- Safety interlocks are installed on doors and removable panels so baling automatically stops it the door is opened.
- All MAX-PAK balers have bilingual safety stickers and caution decals.
- All MAX-PAK equipment meet or exceed all applicable OSHA regulations and are built according to ANSI Z 245.5 safety requirements for baling equipment.
- All equipment has provisions for Lock-Out Tag-Out procedures, so the electrical panel and operators can be secured when servicing or inspecting the machine.
