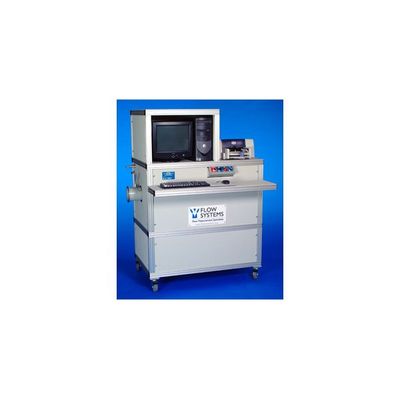

FSI - Fully Automated Automotive Mass Air Flow Sensor (MAFS) Test Stand
The fully automated version of the Automotive Mass Air Flow Sensor (MAFS) Test Stand is an air flow measurement system designed for setting and measuring the mass flow rate of through Mass Air Flow Sensors and other induction components.
- Mass flow range: 0.00098 – 1.5 lbm/sec (0.5 – 694 gps) ±0.4% of reading
- Highly repeatable results (less than ±0.25%)
- Lowest uncertainy and highest automation of the three Mass Air Flow Sensor Test Stands
This test stand utilized sophisticated controller software which allows for automated test sequencing of mass flow measurement of air mass flow rate, MAFS voltage or frequency and ambient test conditions (P, T and RH) from a pre-configured array of set points. The system utilizes sonic nozzles which are installed in a common plenum and the test setup is shown in the following diagram:
Related Products for Varying Levels of Automation & Uncertainty
For information on related test stands, refer to the Mass Air Flow Sensor Test Stand Product Comparison.
Optional configurations for throttle body/chamber and cylinder head testing are available upon request. For more information about customized versions of this test stand, read about the Intake / Exhaust Manifold and Cylinder Head test stand, which was a custom test stand designed to meet specific customer specifications.
Traceable to NIST
All Flow Systems air test stand sonic nozzles and instruments are traceable to National Institute of Standards and Technology (NIST).
