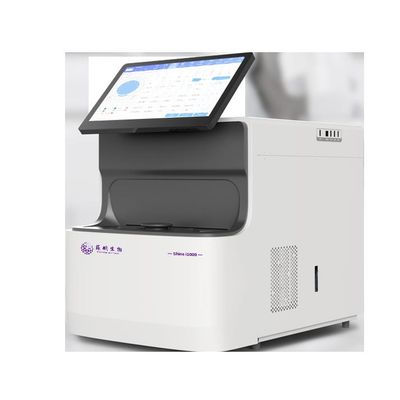

Fapon Biotech - Model Shine i1000 -Fully Automated CLIA Analyzer

Innovative Design
Incubation, washing and detection all-in-one
Small size ≤38 kg, ideal for different settings
50+ patented technologies, 100% self-developed

User Friendly
Color touchscreen interface, simple and convenient to use
All consumable loading is performed upon user’s request in the control panel

Flexible and High-Quality
Batch/random/STAT mode available
Same reagents and consumables used across the entire Shine series analyzers
Production in accordance with industry standards and regulations

• Principle: Magnetic particles-based enzyme (AP/HRP) or direct (AE/ABEI) CLIA
• Throughput: Up to 120 T/H
• Time to First Result: ≤ 15 min
• Walk away capacity: 3 hrs
• Reagent Disk: 10 positions, continuous loading during test
• Cooling System: 2~8ºC
• Reagent Mixing: Non-touch rotary mixing for magnetic particles
• Reagent Volume: 10~200μl
• Reagent Type: 100% ready-to-use liquid reagents
• Evaporation Control: Anti-evaporation cover
• Calibration Mode: Optional
• Sample Feeder: By sample racks
• Sample Capacity: 30 positions
• Sample Probe: Single steel probe for both sample & reagent
• Probe Detection: Clot, bubble & liquid level detection
• Sample Type: Serum/Plasma/Urine
• Sample Volume: 10~150μl
• Carryover: <10 ppm
• Sample Dilution: 1:2 ~ 1:40
• Barcode: Code 39; Code 128; Codabar (USS); Interleaved 2/5W
• Assay Cup Loading: 200 cups, continuous loading
• Substrate Loading: 2 bottles to load continuously during test
• Wash Buffer: 10 L/bottle
• Solid Waste: 200 assay cups per container
• Liquid Waste: 1 barrel
• Operating Temperature: 10~30 ºC
• Humidity: ? 85% (noncondensing)
• Altitude: ≤ 3000m
• Reaction Volume/Test: ≤ 400μl/T
• Reaction Disk: 52 positions
• Reaction Temperature: 37±0.3°C
• Reaction Time: Depending on assays
• Reaction Mixing: Non-touch vortex mixing
• Power Requirements: 100-240V, 50/60Hz
• Power Input:1000VA
• Dimension (mm): 433(L)*679(W)*638(H)
• Weight: ≤38 kg
