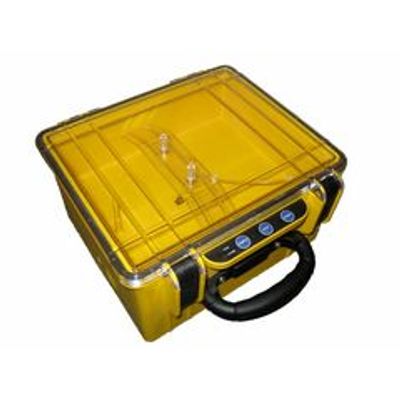

CEL - Fully Automatic Vacuum Air Sampling Box
Features: Three easy-to-operate buttons. Fills bag without sample passing through pump. Automatic-stop function to prevent overfill. Maximum Vacuum: 28" Hg (380" H2O). Collects over 100 samples with a full battery. Purge function to flush bag. Accommodates 0.5L – 2L sampling bags. Clear-view lid. Storage room for accessories. Size: 12.5"L x 12"W x 6.5"H. Weight: 8.5 lbs.
Most popular related searches
vacuum air sampling
air sampling cassette
bag opener
sample bag
sampling bag
bag sampling
air sampling
automatic air sampling
autosampling
fully automatic sampling
Operating Instruction (Also available in PDF Form)
- Press the power switch to turn on the power.
- Open the clear-view lid.
- Place a Tedlar bag inside the sampling box and attach its eyelet to the fixing pole.
- Connect the flexible tubing inside the box to the stem of the valve of the bag.
- Open the valve and close the sampling box.
- Press “SAMPLE” button on the control panel to start sampling.
- Sampling stops automatically when the bag is full.
- Open the lid in 6~8 seconds, close the valve of the bag, and remove the bag from the box.
- If a bag needs to be flushed, press the “PURGE” button. When the bag is empty, press the “STOP” button.
