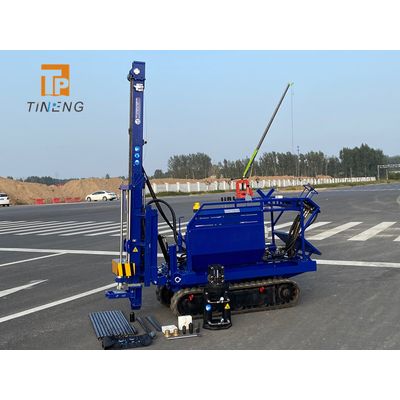

1. The dynamic probing rig SPT-C is a highly functional soil investigation machine, easy to transport due to the folding mast feature.
2. It is versatilely suitable for working in confined spaces and is displaced in outdoor terrains.
3. The folding mast is used for easy transportation, it can control the lifting of the mast by the oil cylinder, adjust the lateral rotation, adjust the front and back, and fold the upper part of the mast
4. Dynamic Probing DPL, DPM, DPH and SPT.
5. Worktable with vice and large capacity storage boxes on both sides
6. Rod extraction function
7. Mechanical shock counter
Hydraulic station unit Specifications:
Honda Engine GX390, maximum power 8.7kw, electric start, with hour meter and voltmeter
Hammer mass-DPL 10kg, DPM 30kg, DPH 50kg, DPSH & SPT 63.5kg
Number of blows-15-30 blows per minute
Dropping height-500 / 750mm adjustable
Window sampling-With 51mm outer diameter, 1m length, split sampler(Optinal)
Extraction unit-16ton pulling force
Weight-845kgs
