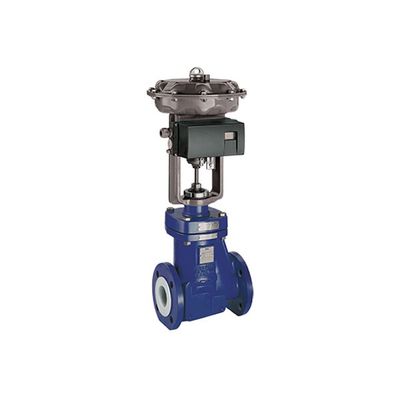

AEGISModel RSS Series -Fully Lined Bellows Sealed Control Valves

SHARE

The Aegis® RSS series valves are specifically designed for flow control of corrosive, hazardous and ultra-pure process fluids and gasses. The RSS series is especially suitable for media where stainless steal and exotic alloys do not provide sufficient corrosion resistance, as an economic alternative to exotic alloy valves, for metal-reactive media, for biotechnology and high-purity media where excellent cleaning and anti-adhesive surfaces are important, and for highly permeating media.

Most popular related searches
  • RSS Valve : Standard Features
  • Application : Flow Control of Corrosive, Hazardous, and Ultrapure Process Fluids and Gases
  • Standards : 16.5,16.10,16.34, API 598
  • Size : 1/2"-6"
  • Body Material  : ASTM A395 DI
  • Trim : PTFE Bellows
  • Temperature Rating  : -75°F to 400°F
  • Pressure Rating  : 235 PSIG
  • Process Sealing : Gas Tested per API 598/EN 12266-A Rate A
  • Stem Sealing : PTFE Bellows
  • Connection Types  : ASME 150#, 300#*
  • Control Characteristics : Linear, Equal Percentage
  • Flow Direction  : Uni-Directional
  • Dimensions : Any dimensions on this site or in literature are for reference only and not to be used for construction
  • Heavy Duty PFA Lining
  • High Security One-Piece Valve Body
  • PTFE Bellows
  • Secondary Packing System
  • Optional Leak Detection Port
  • Exchangeable Valve Plug
  • ISO 5752-R.1 - Standard Dimensions for Two-Way Valves
  • ISO 7005-2/PN 16
  • ANSI/ISA 75.08.07 CI. 150
  • ASME B16.5 CL. 150 RF - Standard Flange Dimensions 150# Class
  • ANSI/ISA 75.08.01 CL. 300
  • ASME B16.5 CL. 300 RF - Standard flange Dimensions 300# Class
