Kemper GmbH

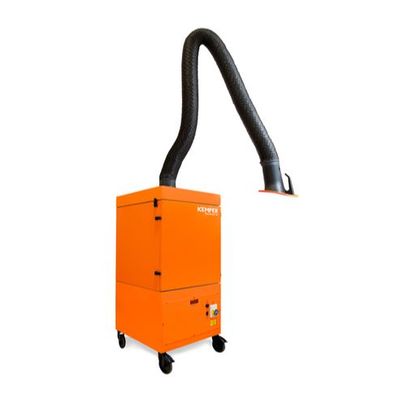

Kemper FilterMaster - Model XL -Fume Extraction Filter Unit
FromKemper GmbH
A functional extraction filter unit with timed, automatic filter cleaning system for high levels of smoke and dust and permanent use. The KemTex® ePTFE membrane filter cartridge for ultra-fine dust particles separates particles even below 0.1 µm. Due to the W3/IFA Certification it is also suitable for use in processing chromium-nickel steel.
Most popular related searches
fume extraction filter unit
exhaust arm
filter cartridge
filter cleaning
mobile air filter
dust particle separation
filter cleaning system
membrane filtration cartridge
exhaust hood
extraction arm
- Suitable for all materials, including high-alloy steel
- High levels of smoke and particles
- Non-stop operation
- High efficiency due to automatic filter cleaning
- Exhaust arm requires less adjustment due to exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
- Safe operation by rotation field control
- 360 degrees rotating exhaust hood with damper
- W3/IFA certified
- Automatic filter cleaning
- KemTex® ePTFE filter cartridge
- Rotation field control
- Exhaust arm up to 4 m
Filter
- Filter stages 1
- Filter method Cleanable filter
- Filter cleaning method Rotating nozzle
- Filter surface ca. 10 m²
- Type of filter Filter cartridge
- Filter material ePTFE-membrane
- Filter efficiency > 99.9 %
- Dust classification M
Basic data
- Extraction capacity 1,000 m³/h
- Dimensions (w x d x h) 655 x 655 x 1,460 mm
- Weight 155 kg
- Motor power 1,5 kW
- Power supply 3 x 400 V / 50 Hz
- Rated current 3.2 A
- Noise level 69 dB(A)
Additional information
- IFA-Certification W3-Approved
- Fan type Radial fan
- Compressed air supply 5 - 6 bar
- Quantity of extraction arms 1
- Exhaust arm type flexible exhaust arm
- Diameter extraction arm 150 mm
- Length of exhaust arm 2 m
