Furuno - Model FAR-22x8-BB series -X/S-BAND BlackBox Radar System

• FAR-2218-BB  X-band, 12 kW, TR up
• FAR-2228-BB  X-band, 25 kW, TR up
• FAR-2238S-BB  S-band, 30 kW, TR up
• FAR-2238S-NXT-BB  S-band, 250 W, TR up, Solid State

ANTENNA

• Peak Output Power
• FAR-2218-BB: 12 kW
• FAR-2228-BB: 25 kW
• FAR-2228-NXT-BB: 600 W (equivalent to magnetron radar 25 kW)
• FAR-2238S-BB: 30 kW
• FAR-2238S-NXT-BB: 250 W (equivalent to magnetron radar 30 kW)
• Type
• X-band (Magnetron): 9410 MHz ±30 MHz, P0N
• X-band (Solid State): CH1 P0N: 9403.75 MHz / Q0N: 9423.75 MHz ± 5 MHz or CH2 P0N: 9413.75 MHz / Q0N: 9433.75 MHz ± 5 MHz
• S-band (Magnetron): 3050 MHz ±30 MHz, P0N
• S-band (Solid state): CH1 P0N: 3043.75 MHz / Q0N: 3063.75 MHz ±5 MHz or CH2 P0N: 3053.75 MHz / Q0N: 3073.75 MHz ±5 MHz
• Beam Width (Horizontal)
• XN12CF: 1.9°
• XN20CF: 1.23°
• XN24CF*: 0.95°
• SN24CF: 2.6°
• SN30CF: 2.3°
• SN36CF: 1.8°
• * 24 rpm only
• Beam Width (Vertical)
• XN12CF: 20°
• XN20CF: 20°
• XN24CF: 20°
• SN24CF: 25°
• SN30CF: 25°
• SN36CF: 25°
• Antenna Rotation Speed
• 24 rpm or 42 rpm (for high speed craft)

DISPLAY

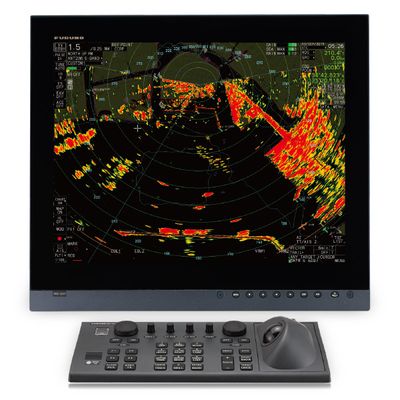

• Display Unit
• Optional supply
• Display Mode
• Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up
• Other Mode / Functions
• Target Analyzer™, Fast Target Tracking™ (TT), EAV (Echo Average), Automatic Clutter Elimination (ACE), AIS, Echo Trails

ENVIRONMENT

• Temperature
• Antenna unit: -25°C to +55°C (storage: -25°C to +70°C)
• Indoor units: -15°C to +55°C (storage: -20°C to +70°C)
• Waterproofing
• Antenna unit: IP56
• Processor unit: IP22
• Control unit: IP20 (RCU-014/015/016), IP22 (RCU-031)
• HUB: IP20 (HUB-100), IP22 (HUB-3000)

POWER SUPPLY

• Power Supply / Consumption Current
• Processor unit (w/ antenna unit)
• [FAR-2218/2318]
• 00-230 VAC: 2.1-1.0 (2.9-1.3 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2 V): 5.4 A (9.0 A)
• [FAR-2228/2328]
• 100-230 VAC: 2.3-1.1 (3.2-1.4 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2V): 8.9 A (12.4 A)
• [FAR-2228-NXT/2328-NXT]
• 100-230 VAC: 2.1-1.1 A (2,9-1.3 A), 1 phase, 50-60Hz or 24 VDC (21.6-31.2V): 8.2 A (11.1 A)
• [FAR-2238S]
• 100-230 VAC: 3.2-1.5 (5.6-2.5 A), 1 phase, 50-60Hz
• [FAR-2238S-NXT]
• 100-230 VAC: 2.6-1.2 (5.1-2.2) A, 1 phase, 50-60 Hz (A): 42 rpm
• HUB (option)
• 100-230 VAC: 0.1 A max. 1 phase, 50/60 Hz
• De-icer (option)
• 100-115/220-230 VAC: 2.6/1.3 A, 1 phase, 50-60 Hz
