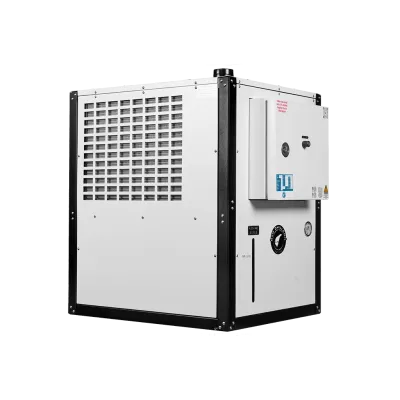

G&D - Model GD – 1.5H Nano Chill -Mobile Glycol Chiller
G&D's GD – 1.5H Nano Chill is a versatile mobile glycol chiller, initially designed for nano breweries and boutique wineries requiring precise temperature control. Its robust construction employs a powder-coated steel frame and stainless steel paneling for durability. The chiller is powered by a 1.5 HP scroll compressor and features an oversized 12-gallon reservoir. Enhanced mobility is achieved with heavy-duty locking casters. Key features include a complete refrigeration circuit, high-efficiency heat exchanger, and a glycol pump. It is built with an insulated stainless steel glycol reservoir, all copper piping, and a comprehensive control panel with safety mechanisms like pressure controls, freeze stat, and high-temperature alarms. The chiller also supports remote monitoring for a year, and its design ensures efficient maintenance with louvered access panels. It is designed for single-stage, digital temperature control and tested for reliability, making it suitable for diverse process cooling applications.
Originally launched as the perfect solution for the nano brewery or boutique winery in need of glycol temperature control, G&D’s Nano Chill is a mobile chiller that has been utilized in a wide variety of process cooling applications. Like all of our units, the Nano Chill is designed with care and built with the durability of a powder coated steel frame and stainless steel paneling. Even with its 1.5 HP scroll compressor and an oversized 12-gallon reservoir, the Nano Chill can be completely mobile with the addition of heavy duty, locking casters.
- (WxLxH): 30” x 35” x 42”
- Tank Volume: 18 Gallons
- Process Pump: 0.5 HP
- GPM @ 25PSI: 20 GPM
- Operating Weight: 550 lbs
- Connection Size: 1"
- Complete refrigeration circuit
- Engineered high efficiency heat exchanger for maximum energy efficiency
- Glycol pump
- Dynamic fluid bypass valve
- Insulated stainless steel glycol reservoir with level indicator
- All insulated copper piping
- ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
- High and low pressure controls
- Freeze stat safety switch
- High temp alarm
- Low ambient control
- Anti cycle timer to prevent short cycling of compressor
- On/pump down/off switch
- Single Stage Digital temperature controller for simple operation
- Fully powder coated steel frame
- Powder coated aluminum housing
- Louvered access panels for easy service and maintenance
- Factory run tested and fully charged with refrigerant
- Two year parts and one year labor warranty
- One year free remote monitoring subscription
