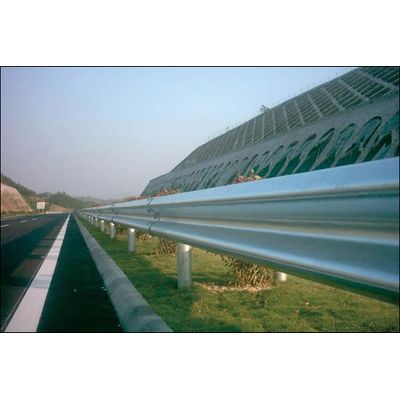

Huaway - Model W6x9 -Galvanised Highway Guardrail

Tube Sleeves for the Type K, Long sleeve no soil plates.
5`3`` rub rail for the rub rail bridge attachment

Bottom Post 1 & 2 for the SRT-350 Type B End treatment.
Steel Line Post W6x9x6’-0’’.

#4 AT 12" OC, Embed
4 1/2" using hilti hit
RE 500 EPOXY.

3/4" Galv. all thread
Rod W/ 3/8” PL
Washers and leveling
Nuts, embed 8", TYP.
