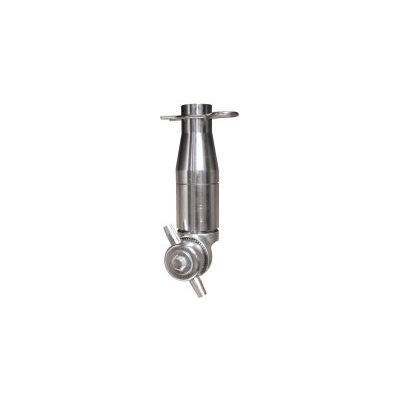

Gamajet - Intrepid Tank Cleaning Machine
So Long, Spray Balls. Gamajet Now Offers a 360-Degree, LOW FLOW Rinsing Machine. The Intrepid Tank Cleaning Machine offers fast, validatable tank rinsing with the 80% less water than the standard spray ball at the SAME pressure. This type of cleaning (fast and thorough without the use of chemicals) is ideal for cleaning light liquids and powders. A 500 gallon tank that once took 10 minutes at 60 psi and 60 gpm with a spray ball now takes 4 minutes with only 15 gpm at the same pressure. In addition to the 510 gallons of water saved the tank will be cleaned thoroughly, every time without clogging.
Unlike traditional Gamajet rotary impingement tank cleaners, the Intrepid Tank Cleaning Machine utilizes a unique “direct-drive” design, requiring no gear reduction. However, the machine still applies concentrated streams in a complete, 360-degree pattern, like all other Gamajet machines. Patents have been applied for this unique direct drive design.
Like spray balls, the Intrepid, is easy to install and incorporates a sanitary design, including FDA compliant materials, self-cleaning and draining capabilities and a high polish, sanitary finish, making it the ideal tank cleaning machine for both sanitary and industrial applications.
GAMAJET INTREPID technical specs
Operating Range:
Pressure: 10 to 80 psi (1-5 bar)
Temperature: up to 250°F (up to 120° C)
Can be sanitized with steam at temperatures
up to 300° F (148.9° C)
Flow Rate: 5 to 25 gpm (20 to 95 lpm)
Cleaning Radius: 2.5` (.75 Meters)
Wash Cycle Time: 4-8 minutes
Dimensions:
Height: 7.59" (192.786 mm)
Body Diameter: 1.77" (44.958 mm)
Overall Width: 2.76" (70.104 mm) including Nozzle Carrier
Clearance: 2.80" (71.12 mm) minimum passageway I.D.
Weight: 2 pounds (1 kg)
Other Options:
Varying Sanitary Inlet Adaptors are Available
Other Specifications:
Inlet Connection: Standard Connection: 1” Slip-Joint over Sanitary Stainless Steel Tubing
Construction/Design: Parts are machined from 316-L and 316 Stainless Steel investment castings or 316 SS bar stock. All exposed parts are 316-L Stainless Steel.
O-rings: Made from compliant UHMW-PE material.
Bearings: Bearings in the rotating elbow and nozzle housings are self-flushing Teflon & UHMW-PE Materials.
Nozzle Carrier: Dual nozzles
Drive Mechanism: The wash fluid enters the Gamajet at the inlet collar where it encounters and spins turbine blades. The turbine blades directly drive the body of the unit to the middle of the input shaft.
Mounting: Gamajet Intrepid is designed to be mounted vertically, suspended from the top of the vessel.
Lubricant:The Gamajet Intrepid is a non-lubricated, contaminant-free unit. No customer supplied or user-maintained lubricant is needed.
Gear Ratio: 1:1 Direct Drive.
Operating & Maintenance: Complete operating and maintenance procedures are covered in a detailed instruction manual furnished with all machines. Ready availability of in-stock spare parts or kits, and the ease of on-site maintenance minimize the need for costly factory repairs. Prompt factory overhaul or repair service is always available. Replacement parts and service kits are stocked year round. Special 24-48 hour delivery available upon request at no extra charge.
Benefits:
Extremely sanitary in design
Fast, rinsing machine for light residues
Minimal pressure and flow required
Direct replacement for spray balls
