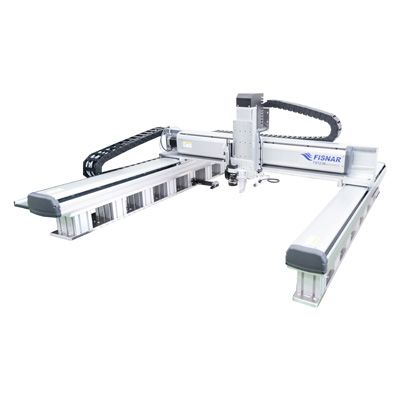

Fisnar - Model F6000N Advance Series -Gantry Robotic System
FromFisnar
The F6000N ADVANCE gantry robotic systems can be easily integrated with in-line industrial automation. Gantry industrial robots have all their axes above the work area making them ideal for large dispensing applications.
Most popular related searches
The modular connectivity design allows Fisnar CCD vision system, tip alignment, and height detect kits to be easily incorporated onto the robot for increased productivity and performance.
Programming and control can be carried out via teach pendant, RS232, or proprietary PC software (sold separately).
- F6603N ADVANCE-110: 600 x 600 150 mm Work Area
- F6603N ADVANCE-220: 600 x 600 x 150 mm Work Area
- F6123N ADVANCE-110: 800 x 1,200 x 150 mm Work Area
- F6123N ADVANCE-220: 800 x 1,200 x 150 mm Work Area
- Work area up to 800 x 1,200 mm
- Axis repeatability +/- 0.05 mm
- 20 kg Z-axis payload
- Z-axis motor brake mechanism
- Dual linear guide & ball screw mechanism
- AC servo motor drive system with closed loop encoder feedback
- Modular connectivity interface
