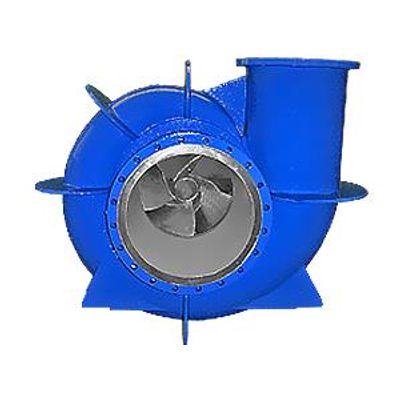

Ganz - Model BK -Horizontal Shaft End Suction Pump
Horinzontal-shaft, single-entry, single-stage pump with volute casing and overhanging bearing support.
The pump consists of two parts namely the scroll casing cast on feet together with the suction branch. The other part is the rotor embedded in the bearing bracket by means of ball bearings.
Clean, cold water, or hot water up to a temperature of max. 100 °C, or slightly contaminated industrial water. Max. silt content: 5 g/dm3. Particle size: max. 0.1 mm. Other non-corrosive liquids with a viscosity slightly differing from that of water can be handled.
Primarily industrial and potable water supply systems and agricultural irrigation plants.
Soft sealing cord or mechanical stuffing box. The stuffing box can be cooled.
The bearing has two single row deep groove ball bearings. If necessary, the oil can be cooled by a cooling spiral mounted in the oil space.
- Impeller, gap ring, basic bush, water lock ring: bronze.
- Pump house, stuffing box cover, bearing block, bearing covers: cast iron.
- Shaft: carbon steel or stainless steel.
- Shaft protective sleeve: stainless steel
