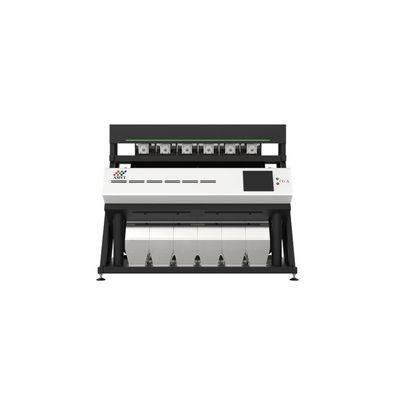

Garratt - Model CG 6 -Colour Sorters
Colour Sorters are used to sort by shape, size and of course colour. AMVT Colour Sorters complement the Garratt Industries Equipment line very well and provide a great final machine in a facility.
AMVT Colour Sorters are manufactured to operate in nearly any climate, the CG Colour Sorter is capable of functioning in temperatures from -20 to +40 degrees celsius.
Combined with patented high-speed, contact-free, electromagnetic ejectors that are capable of achieving frequencies of 1,200 times per second while guaranteeing 10 Billion lifetime ejections. The Durability and pin-point accuracy is unmatched by any other optical colour sorter
The AMVT CG Colour Sorter sorts material using full colour Red, Green and Blue to reject even the slightest colour variations. It can sort colours independently or simultaneously and is great for rejecting colour contrasting impurities such as Mustard and Canola, Wild Oats and Fusarium.
The AMVT CG Colour Sorter uses the power of artificial intelligence to help it sort. It sorts based on any given inputs using independent imaging of ideal material and impurities. Great for virtually everything, most sorting can be done using this program if another doesn’t quite reject everything.
The AMVT CG Colour Sorter sorts by detecting higher levels of Red, Green or Blue compared to only one of those colours. This is great for colour variations that are not as distinct.
The AMVT CG Colour Sorter rejects materials based on true ratios with 2.5D detection for shape sorting. Great for removing noticeable size differences such as broken seeds, Wild Buckwheat etc.
High-resolution touchscreen and simple graphics for fast learning and easy use. Effortless USB software upgrades to give you the best software as it hits the market so your machine works better for longer. (See interface below)
Specialized Ejectors
Specially made ejectors reduce wear over time and optimize timing for the low carryover and reduced air consumption. Dual air supply lines stabilize air pressure when sorting materials with higher defect ratios.
Ultra High-Definition imaging detects the geometric center of inputs with 3D reconstruction to achieve pin-point removal. Re-sort capabilities reclaim good product form the first round of rejects.
Stable Wi-Fi allows you to modify your sorter’s functions without being physically present. Wi-Fi also allows remote technical support if required.
Near-InfraRed spectroscopy is an accurate, non-destructive and inexpensive method of determining the quality of your materials internally. (Available upon request for additional cost)
Proportional-Integral-Derivative positioning monitors and controls feeder levels in real-time to ensure even material input, improving your processing efficiency.(Available upon request for additional cost)
