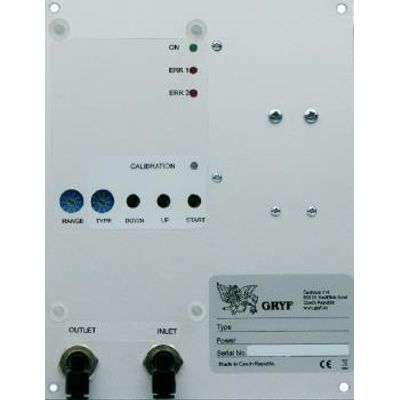

GRYF - Model OXY Z 02/100/2 D -Gas Analyzer

Attributes: Data

• Supply voltage: 24 V/dc ± 10%
• Supply current: 500 mA
• Output signal: 4 ÷ 20 mA
• Oxygen concentration range: 1 ÷ 100%
• Sensitivity: 0.01%(1÷5%)
• 0.1% (1÷100%)
• Accuracy: ± 0.5 %
• Warm-up time: 60 s
• Temperature stabilization after start-up: min. 5 minutes
• Signal READY: 24V,  max. 100mA
• Measured gas flow: 0.2 ÷ 0,3 l / min
• Inlet pressure : 1 bar  ± 0.1bar
• Maximum allowable pressure - PS: 2 bar
• Operating temperature: -10 °C ÷ 50 °C [14 °F ÷ 122 °F]
• Dimensions: 167 x 130 x 65 mm
