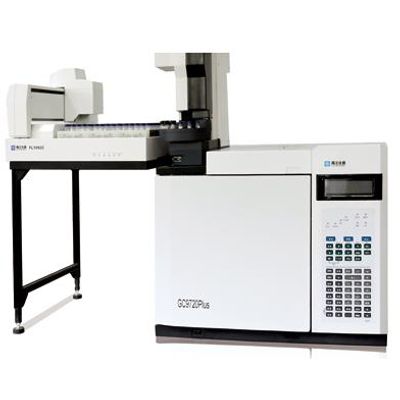

Fuli - Model GC 9720 Plus -Gas Chromatograph System

EPC/AFC gas system

• Full AFC/EPC, 6 AFC module with 18-channel AFC/EPC independent control,
  AFC/EPC pressure accuracy 0.001psi, Retention time RSD <=0.02%, Peak area RSD <=1.0%,
• Carrier and makeup gas settings selectable for He, H2, N2 and Ar
• Psi, KPa, Bar units selectable
• Pressure control range: 1~600KPa, Pressure accuracy: 0.01Psi, Programmable pressure ramp RSD ≤0.5%
• Flow rate control range: 0~600ml/min, flow rate accuracy: 0.1ml/min, flow rate RSD≤0.1%
• Flow sensor accuracy: ≤±3%, detector module accuracy: ≤±7%

Column oven—Excellent temperature control system

• Column oven dimension: 278×310×165mm=14.2L, accommodate up to 2pcs 105m×0.53mm ID capillary column
• Temp. control range: RT+5?~450?(0.1? increment)
• Standard cool-down mode 450—50?<=5min
• Optional quick cool-down mode 450—50?<=3.5min
• Scientific inner heating interchange to achieve high consistency in between front and back column heating distribution
• Reproducible temp. ramp process in column oven to achieve good retention time RSD
• Max temp.-ramp rate: 120 ?/min
• Programming temp.-ramp: 30 steps

Inlets

• Packed purge injection port(PPIP)
• Split/splitless capillary port(S/SL)
1. Max temperature: 450?
2. Split ratio: 4500:1
3. Gas saver mode to reduce gas consumption without compromising performance
4. Programmable temp./pressure ramp: 8 steps
5. Manual dismount in 10s to make liner replacement easier
6. Intelligent tip to record and remind replacement/maintenance of septum, liner and split cold-trap

Autosampler

• Single FL1092T, 16-vial autosampler
• Double FL1092T, double-tower independent asynchronous control or synchronous control to improve analysis efficiency
• Single/double FL1092T+FL1092C, 150-vial autosampler, heating/barcode scan/stirring and whole plate cooling/heating are optional

Multi-valve system

• Multi-valve/multi-column available to customize per different application, max 4 external valve can be installed
• One-time injection for complete gas analysis
• High stability and low valve switchover fluctuation

Workstation and data communications

• LAN
• Windows 10/7 support
• Signal capture from 2 detectors simultaneously
• Sampling frequency: 100Hz
• Sampling speed: 50 times/sec
• Unlimited peak quantity
• Self-diagnosis: intelligent automatic error identification and self-protection
• FL97PLUS software and Clarity V8.3 to fully support FDA-21 CFR PART 11

Basic info

• Votage: 220V±10%, 50Hz
• Power: 3000W
• Dimension:  645×500×555mm
• Net weight: 55KG
