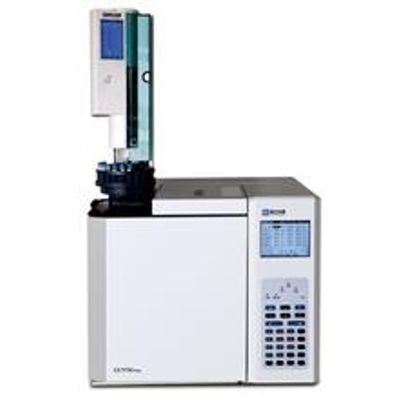

Fuli - Model GC 9790 Plus -Gas Chromatograph System
System capability: Assembly simultaneously: max 2 inlets+ max 3 detectors(FID, TCD, ECD, FPD and NPD). Automatic control can be done from local keyboard and networked PC. Autosampler is compatible. 6-channel independent temperature control.
Most popular related searches
gas chromatography system
chromatography system
gas chromatography
digital temperature controller
chromatograph
chromatography
H2S
flow control
FID detection
workstation
EPC/AFC gas system
- Carrier gas via EPC/AFC, auxiliary gas via AFS(Advanced Flow Scout) or mechanical regulator
- Carrier gas and make-up gas selectable: He, H2, N2 and Ar. Every carrier gas system can control via constant-pressure, constant-flow, programmable pressure and programmable flow mode, also can calibrate with He, H2, N2 and Ar
- Psi, KPa, Bar units selectable
- Pressure control range: 1~90Psi, Pressure accuracy: 0.01Psi, Programmable pressure ramp RSD ≤0.5%
- Flow rate control range: 0~200ml/min, flow rate accuracy: 0.1ml/min, flow rate RSD≤0.1%
Column oven
- Column oven dimension: 260×250×150mm
- control range: RT+6?~399?(0.1? increment)
- Programming temp.-ramp : 8 steps
- ramp speed: 0.1~40?≤1 minute(0.1? increment)
- Fast cool down speed: 200~100?≤3 minutes
- accuracy: ±0.1?
- Max run time: 999.99 minutes
Inlets
- Packed purge injection port(PPIP)
- Split/splitless capillary port(S/SL)
- Max temperature: 400?
Detectors
Workstation and data communications
- FL97PLUS and Clarity V8.3 available
- Output range: -1500~+1500mV
- Sampling speed: 60 times/sec
Basic info
- Voltage: 220V±10%, 50Hz
- Power: 2500W
- Net dimension: 566.2×501.3×498mm
- Net weight: 42KG
