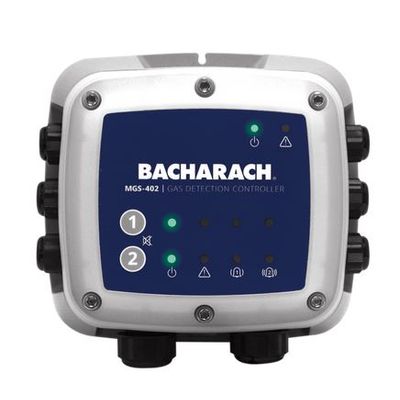

IM - Model MGS-402 -Gas Detection Controller
Bacharach’s MGS-402 Gas Detection Controller centralizes the status of up to 2 MGS-410 gas detectors in one single location.
A bank of LEDs corresponds to each connected gas detector; showing power, alarm status and fault indicators. The MGS-402 can provide power for up to 2 pieces MGS-410 gas detectors, which can be daisy-chained along with Modbus communication to each gas detector; simplifying and reducing the cost of installation. Combining the MGS-402 with Bacharach’s MGS-410 gas detectors provides a single system with an easy means of achieving compliance with refrigeration safety standards such as EN 378 and ASHRAE 15.
Most popular related searches
gas detection control
gas detection controller
gas detection
gas detection system
gas controller
gas control
gas alarm system
gas alarm
standard refrigerant
refrigerant compliance
- LED Status Indication - At-a-glance visualization of whole gas detection system alarm status
- Alarm LEDs - Red alarm LEDs are located in the transparent frame of the front panel, so that the entire housing flashes and lights up in case of an alarm
- Output - Two configurable analog outputs (4-20mA, 1-5, 2-10VDC)
- Alarm output - Three relays (pre-alarm, main alarm, fault)
- Power Gas Detectors - Saves time and money on electrical installation
- Bus system - communication with the MGS-410 detectors and power supply to the detectors results in shorter installation time and reduces installation costs
- Modbus RTU Master to Gas Detectors - Gathers full set of gas detector status
- Modbus RTU Slave to BMS / BAS - Integrates into BMS / BAS or refrigeration controllers
- Enclosure - Protection class IP66
- Audible and Visual Alarms - Complies with ASHRAE 15 / EN 378 - no additional hardware
- User interface 2 x push buttons
- Common Alarm Relays 1 x Low Alarm, 1 x High Alarm (240 VAC @ 10A)
- Fault Alarm Relays 1 x Fault (240 VAC @ 10A)
- Serial Ports
- 1 x RS485 MODBUS RTU Slave for BMS/BAS
- 1 x RS485 MODBUS RTU Master for Gas Detectors
- Analog Output 2 x analog output (4-20mA, 1-5, 2-10VDC)
- Alarm Silence 2 x push buttons / AUX input
- Ambient Temperature Range -40 - 50°C
- Power Supply 100 - 240 VAC, 50/60 Hz, 20W (max.); 24VDC
- Dimensions / Weight 165 x 165 x 87 mm / 0,76 kg
- Enclosure Rating IP66
- Cable Entries 2 x M20 / ½" for power supply; 6 x M16 cable gland for communication
- Approvals CE, UL / CSA / IEC EN 61010-1
- Gas Detection Controller MGS-402
- Manual
- External Strobe & Horn (24VDC or 240VAC)
