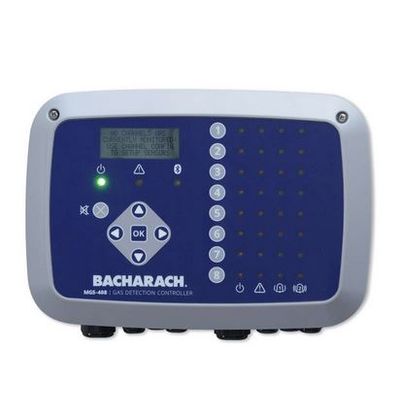

IM - Model MGS-408 -Gas Detection Controller
Bacharach’s MGS-408 Gas Detection Controller centralizes the status of up to 8 gas detection channels in a single location. The digital display provides a real-time view of the gas concentration and status at each gas detection point. It also allows for the controller to be configured in minutes via the intuitive menu system.
A bank of LEDs corresponds to each connected gas detector; showing power, alarm status and fault indicators.
The MGS-408 can provide power for up to 8 gas detectors, which can be daisy-chained along with Modbus communication to each gas detector; simplifying and reducing the cost of installation.
Integration is possible with Bacharach’s MGS-400 Series, MGS-250 and MGS-550 Gas Detector platforms; allowing for a gas detection system design which can utilize the benefits of multiple gas detector types as required in different locations (machinery rooms, cold storage rooms, walk-in freezers and food preparation areas).
Combining the MGS-408 with Bacharach’s range of gas detectors provides a single system with an easy means of achieving compliance with refrigeration safety standards such as EN 378 and ASHRAE 15.
- LED Status Indication - At-a-glance visualization of whole gas detection system alarm status
- Integrates with Gas Detectors - Integrates the MGS-250,MGS-410, MGS-450, MGS-460 and MGS-550; creating a system suitable for applications with different requirements at multiple monitoring points
- Power Gas Detectors - Saves time and money on electrical installation
- Modbus RTU Master to Gas Detectors - Gathers full set of gas detector status
- Modbus RTU Slave to BMS / BAS - Integrates into BMS / BAS or refrigeration controllers
- Event logging via SD - Card Retains / exports alarm and status history of the gas detection system
- Display Screen - Displays real time data from all gas detectors in the system and offers simple configuration of controller
- Audible and Visual Alarms - Complies with ASHRAE 15 / EN 378 - no additional hardware
- User Interface Front Panel Push Buttons
- Common Alarm Relays 1 x Low Alarm, 1 x High Alarm
- Fault Alarm Relays 1 x Fault
- Serial Ports
- 1 x RS485 MODBUS RTU Slave for BMS/BAS
- 1 x RS485 MODBUS RTU Master for Gas Detectors
- Ambient Temperature Range 0 - 45°C
- Power Supply 100 - 240 VAC, 50/60 Hz, 80W (m
- Dimensions 280 x 215 x 100mm
- Weight 1.25 kg
- Cable Entries 2 x M20 / 1/2" for Power; 6 x M16 for signals
- Approvals EN 61010-1, CAS C22.2 61010-1, EN 50270, CE, FCC 15 Subpart B
- Gas Detection Controller MGS-408
- Manual
- Strobe & Horn mounted directly onto MGS-408
- External Strobe & Horn
