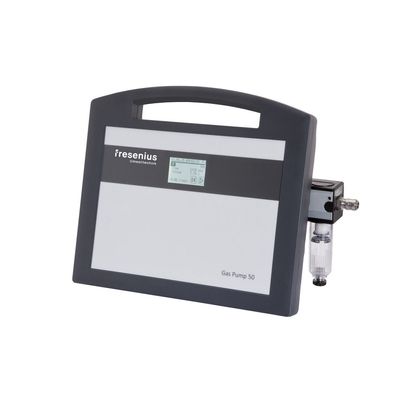

Fresenius - Model GP 50 -Gas Pump Mobile Analyzer

Efficient, reliable and mobile gas sampling system for field use

• Rehabilitation
• Inspection of contaminated sites
• Environmental analytics
• Laboratories
• … and other fields

• Housing:
  ASA + PC-FR plastic, IP 54
  W 348 x H 303 x D 125 mm,
  Weight: 3.5 kg
• Single-channel system with digital flow and volume control
• Battery runtime: ~ 12 h
• Supply voltage: 10.8 V DC/8.7 Ah lithium-ion battery
• Charging voltage: 18 V DC/1 A
• 100 V–240 V ~ 50 Hz–60 Hz charger
• Interface: RS323
• Hose connections:
  Inlet: quick coupling
  Outlet: bulkhead fitting
• Time control: 1 min–999 min
• Flow control:
  0.1 l/min–4 l/min
  or 1 l/min–4 l/min
• Volume control:
  0.1 l–3000.0 l
• Climatic conditions: ambient temperature: 5–45 °C
• Relative humidity: ~ 90 %, dew-free
• Ready for use immediately after being switched on
• Optionally available: condensate trap

• Micro-processor controlled flow and volume control
• Variably adjustable reference values plus pre-suction and sampling times
• No mains power required
